The DS8640N can handle clock frequencies up to 100 MHz, but it's recommended to operate it at 50 MHz or lower for optimal performance and to minimize power consumption.
To ensure reliable data transmission over long distances, use a balanced transmission line (e.g., twisted pair or coaxial cable), maintain a consistent impedance, and consider using a line driver or repeater to boost the signal.
The maximum cable length supported by the DS8640N depends on the transmission frequency, cable type, and signal quality. As a general guideline, the maximum cable length is around 100 meters at 50 MHz, but it's recommended to consult the datasheet and perform signal integrity analysis for specific applications.
For point-to-point applications, connect the transmitter (TX) output to the receiver (RX) input directly. For multidrop applications, connect multiple receivers to a single transmitter output, ensuring that each receiver has a unique address and the transmission line is properly terminated.
Use a stable power supply with a low noise floor, and decouple the power pins with capacitors (e.g., 0.1 μF and 10 μF) to minimize noise and ensure reliable operation. Additionally, consider using a voltage regulator to regulate the power supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS8640N Overview

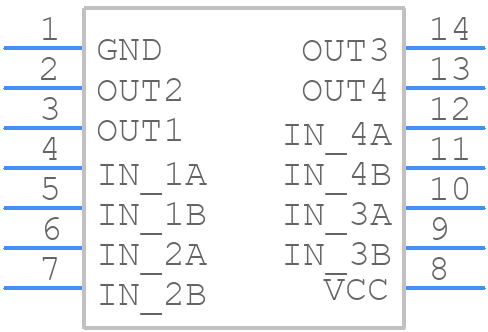

Use the download button to access the DS8640N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS864,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
