Texas Instruments provides a recommended PCB layout in the DS90CF364AMTD evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management techniques, such as using a heat sink, thermal interface material, and ensuring good airflow. Additionally, the device should be operated within its recommended operating temperature range of -40°C to 105°C.
The maximum cable length supported by the DS90CF364AMTD depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters at a data rate of 3.5 Gbps. Longer cable lengths may be possible with the use of repeaters or active cables.
To troubleshoot issues with the DS90CF364AMTD, it is recommended to follow a systematic approach, starting with a review of the device's datasheet and application notes. Additionally, Texas Instruments provides a range of tools and resources, including the DS90CF364AMTD EVM, which can be used to debug and troubleshoot issues.
The power consumption of the DS90CF364AMTD depends on the specific application and operating conditions. However, according to the datasheet, the typical power consumption of the device is around 350 mW at a data rate of 3.5 Gbps.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90CF364AMTD Overview

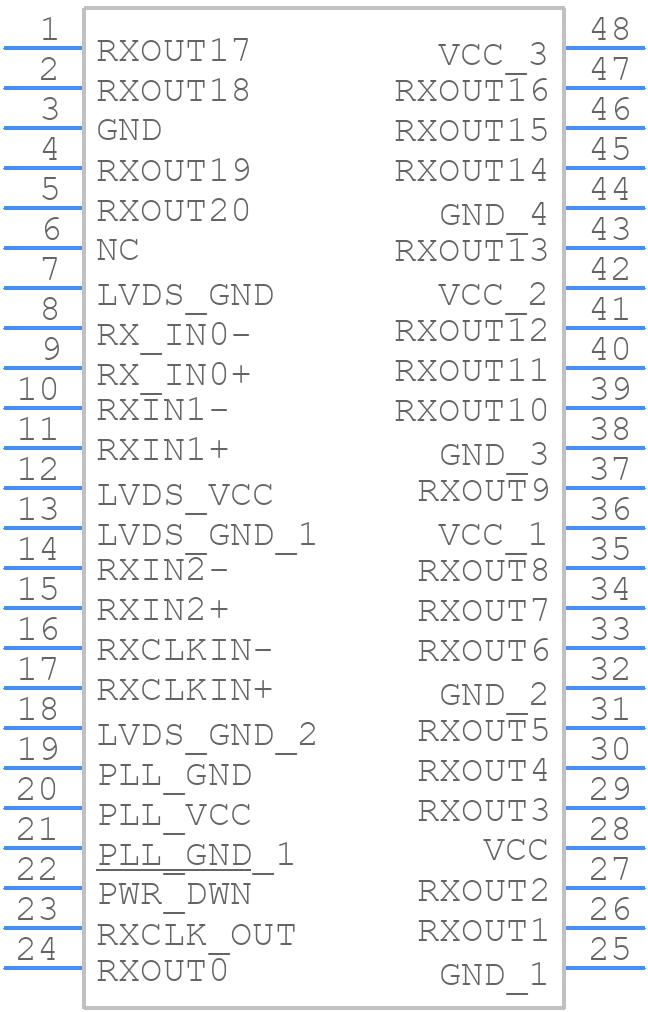

Use the download button to access the DS90CF364AMTD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90C,
or try a keyword search, such as Line Driver or Receivers
