Texas Instruments provides a recommended PCB layout in the DS90LV028AQDQFRQ1 datasheet, but it's also recommended to follow the guidelines in the 'DS90LV028A PCB Layout and Routing Guidelines' application note (SLVAUH5) for optimal performance.
To ensure signal integrity, it's essential to follow proper PCB design and layout practices, such as using differential pairs, minimizing trace length and impedance mismatches, and using termination resistors. Additionally, the DS90LV028AQDQFRQ1 has built-in features like programmable output swing and slew rate control to help optimize signal integrity.
The maximum cable length supported by the DS90LV028AQDQFRQ1 depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at a data rate of 2.97 Gbps. For longer cable lengths, repeaters or active cables may be required.
The DS90LV028AQDQFRQ1 is a highly configurable device, and its configuration depends on the specific application requirements. Texas Instruments provides a software development kit (SDK) and a graphical user interface (GUI) tool to help configure the device. Additionally, the datasheet and application notes provide detailed information on the device's registers and configuration options.
The power consumption of the DS90LV028AQDQFRQ1 depends on the specific operating conditions, such as the data rate, output swing, and supply voltage. However, according to the datasheet, the typical power consumption is around 250 mW at a data rate of 2.97 Gbps and a supply voltage of 1.8 V.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV028AQDQFRQ1 Overview

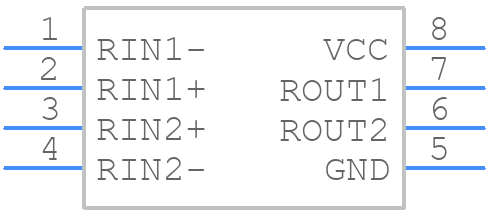

Use the download button to access the DS90LV028AQDQFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
