A good PCB layout for the DS90LV804TSQ/NOPB involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity when using the DS90LV804TSQ/NOPB at high frequencies, it's essential to use a well-designed PCB layout, minimize signal trace lengths, and use termination resistors to match the impedance of the transmission lines. Additionally, using a low-loss dielectric material and controlling the impedance of the transmission lines can help to reduce signal reflections and ensure signal integrity.
The maximum cable length supported by the DS90LV804TSQ/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters at data rates of up to 1.5 Gbps. For longer cable lengths or higher data rates, it's recommended to use repeaters or active cables to ensure signal integrity.
To troubleshoot issues with the DS90LV804TSQ/NOPB, it's essential to use a systematic approach. Start by checking the power supply voltage and ensuring that it's within the recommended range. Then, use an oscilloscope to check the signal quality and look for signs of signal degradation or data corruption. Check the PCB layout and ensure that it's designed to minimize signal reflections and electromagnetic interference. Finally, use a logic analyzer to check the data transmission and reception.
Yes, the DS90LV804TSQ/NOPB can be used in a multi-drop bus configuration. However, it's essential to ensure that the total capacitance of the bus does not exceed the recommended maximum value, and that the bus is properly terminated to prevent signal reflections. Additionally, it's recommended to use a common clock signal and to ensure that all devices on the bus are properly synchronized.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV804TSQ/NOPB Overview

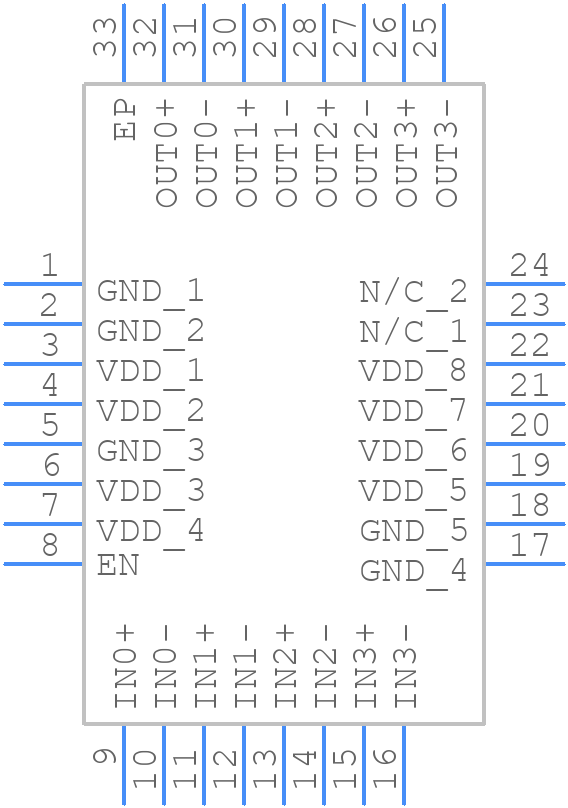

Use the download button to access the DS90LV804TSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
