A good PCB layout for the DS90LV804TSQX/NOPB involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity when using the DS90LV804TSQX/NOPB at high frequencies, it's essential to use a well-designed PCB with controlled impedance, minimize signal reflections, and use termination resistors at the receiver end. Additionally, using a low-jitter clock source and ensuring that the signal amplitude is within the recommended range can also help.
The maximum cable length supported by the DS90LV804TSQX/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters at data rates of up to 1.5 Gbps. It's recommended to consult the datasheet and application notes for more specific guidance.
To troubleshoot issues with the DS90LV804TSQX/NOPB, start by checking the power supply voltage, clock frequency, and signal amplitude. Use an oscilloscope to verify the signal integrity and check for any signs of signal degradation or data corruption. Additionally, consult the datasheet and application notes for troubleshooting guidelines and use tools such as signal generators and logic analyzers to help identify the root cause of the issue.
Yes, the DS90LV804TSQX/NOPB can be used in a multi-lane configuration. To configure it, you'll need to use multiple devices and connect them in parallel, using a common clock signal and ensuring that the lanes are properly synchronized. Consult the datasheet and application notes for more specific guidance on configuring the device for multi-lane operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV804TSQX/NOPB Overview

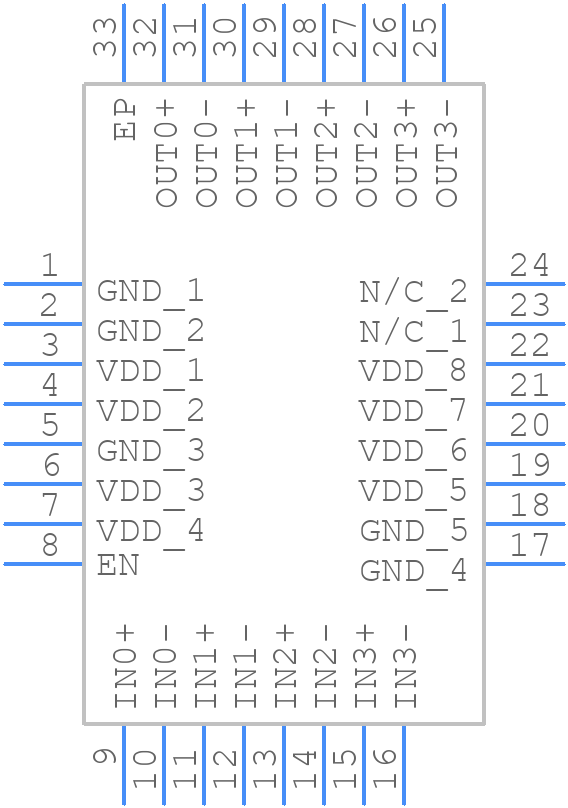

Use the download button to access the DS90LV804TSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
