Texas Instruments provides a recommended PCB layout guide in the DS90UB914A datasheet, which includes guidelines for signal routing, power supply decoupling, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize signal integrity issues.
The DS90UB914ATRHSTQ1 is a highly configurable device. Texas Instruments provides a configuration tool, the DS90UB914A Configuration Tool, which allows designers to customize the device's settings for their specific application. The tool provides a graphical user interface to configure parameters such as link speed, data format, and clocking mode.
The DS90UB914ATRHSTQ1 is a high-speed device that generates heat. To ensure reliable operation, it's essential to implement proper thermal management. This includes providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device. Texas Instruments provides thermal management guidelines in the datasheet and application notes.
Texas Instruments provides a range of troubleshooting resources, including application notes, FAQs, and technical support. Designers can also use the device's built-in diagnostic features, such as the built-in self-test (BIST) function, to identify and debug issues.
The DS90UB914ATRHSTQ1 is a high-speed device that can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, designers should follow proper PCB layout and shielding techniques, use EMI filters, and ensure good grounding and shielding practices.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UB914ATRHSTQ1 Overview

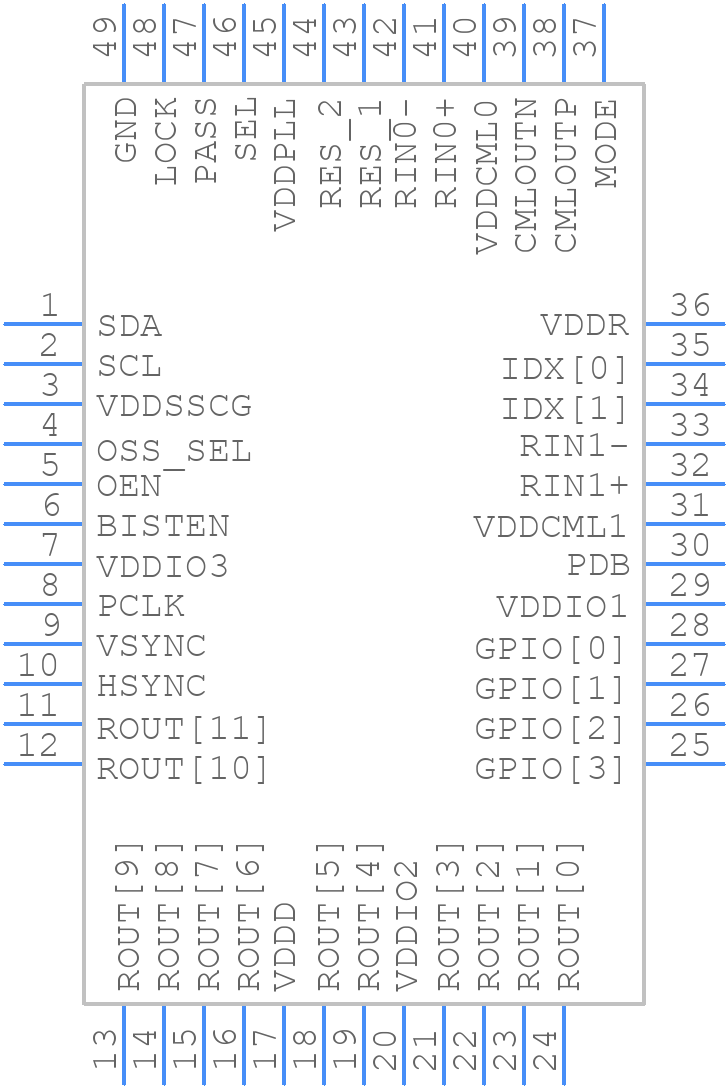

Use the download button to access the DS90UB914ATRHSTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
