Texas Instruments provides a recommended PCB layout guide in the DS90UB924TRHSRQ1 evaluation module user's guide, which includes guidelines for component placement, routing, and thermal management.
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal management guidelines in the datasheet, including using a heat sink, thermal interface material, and ensuring good airflow around the device.
The maximum cable length supported by the DS90UB924TRHSRQ1 depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation.
While the DS90UB924TRHSRQ1 is designed to operate with a 1.8V input voltage, it can tolerate a range of input voltages from 1.7V to 2.0V. However, operating the device outside of the recommended voltage range may affect its performance and reliability.
Texas Instruments provides a troubleshooting guide in the DS90UB924TRHSRQ1 datasheet, which includes steps for identifying and resolving common issues. Additionally, engineers can use tools such as oscilloscopes and logic analyzers to debug the device and identify the root cause of the problem.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UB924TRHSRQ1 Overview

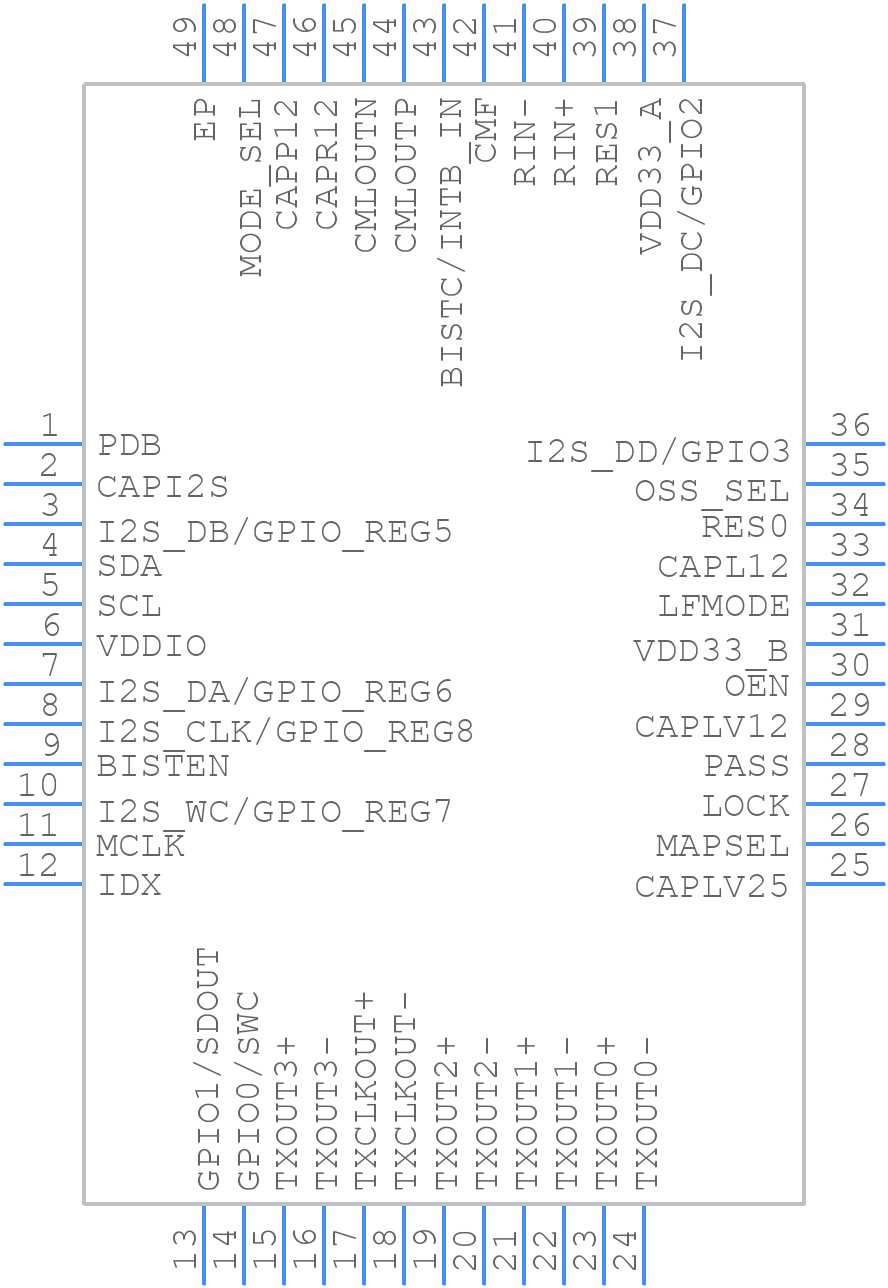

Use the download button to access the DS90UB924TRHSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
