The recommended PCB layout is to keep the device as close to the power supply as possible, and to use a ground plane to minimize noise and EMI. Additionally, use a ferrite bead or a common-mode choke to filter the power supply and reduce noise.
To optimize the DS90UB925QSQX/NOPB for high-speed data transmission, ensure that the PCB layout is optimized for low noise and EMI, and use a high-quality clock signal. Additionally, consider using a high-speed buffer or repeater to extend the transmission distance and reduce signal degradation.
Common issues that can cause the DS90UB925QSQX/NOPB to malfunction include power supply noise, EMI, and improper PCB layout. Troubleshooting steps include checking the power supply voltage, checking for EMI and noise, and verifying the PCB layout. Additionally, use a logic analyzer or oscilloscope to debug the signal integrity and timing.
Yes, the DS90UB925QSQX/NOPB is designed to operate in a wide temperature range of -40°C to 125°C. However, it's recommended to follow the recommended PCB layout and thermal design guidelines to ensure optimal performance and reliability in high-temperature environments.
The maximum cable length for the DS90UB925QSQX/NOPB depends on the data rate, cable type, and signal integrity. A general rule of thumb is to keep the cable length below 10 meters for data rates above 1 Gbps. However, it's recommended to use a cable with a high-quality shield and a ferrite bead or common-mode choke to minimize EMI and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UB925QSQX/NOPB Overview

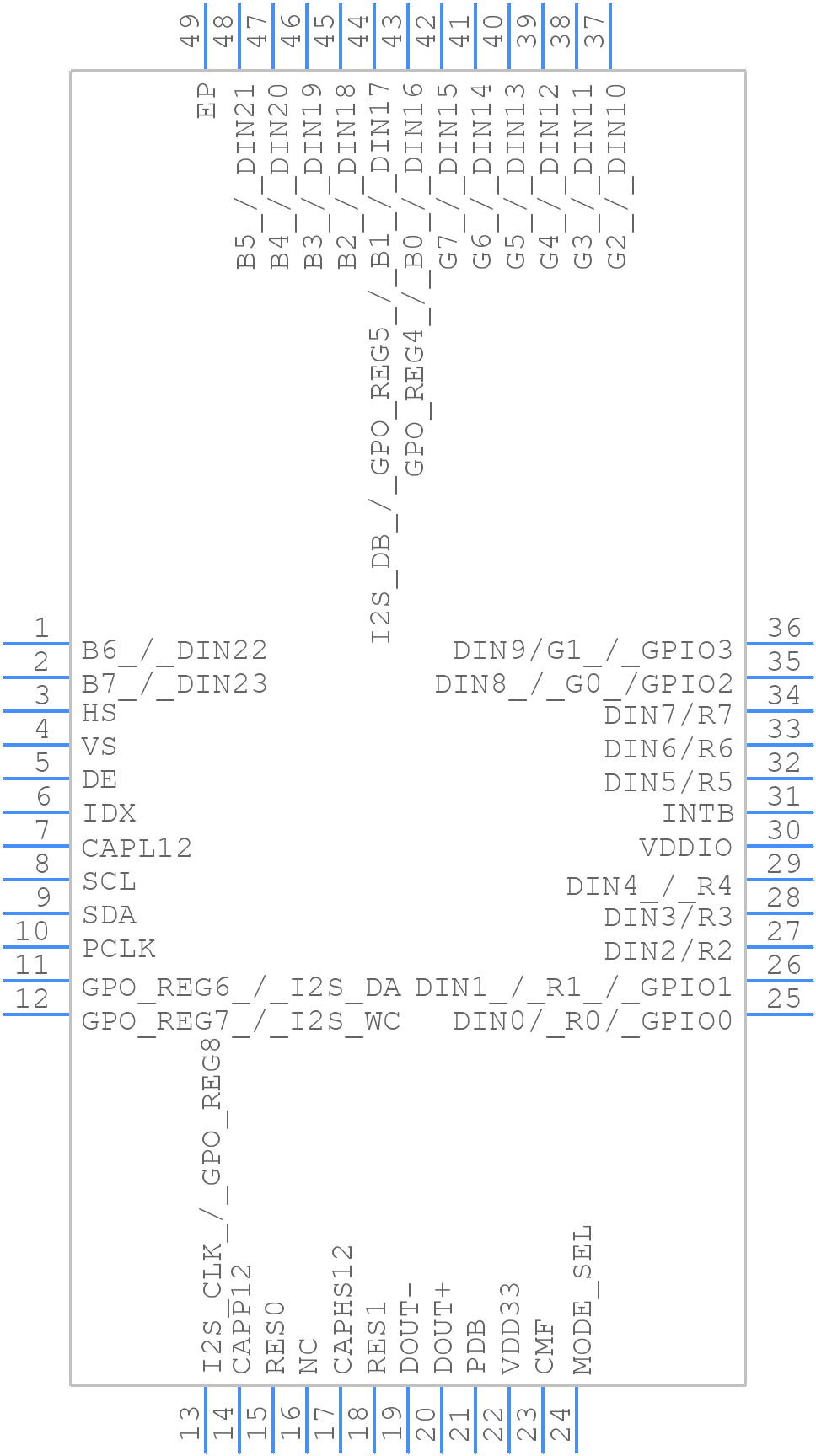

Use the download button to access the DS90UB925QSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
