Texas Instruments provides a recommended PCB layout in the DS90UB933TRTVTQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management techniques, such as using a heat sink, thermal interface material, and ensuring good airflow. Additionally, the device should be operated within its recommended operating temperature range.
When designing the power supply for the DS90UB933TRTVTQ1, it is essential to ensure a stable and clean power supply, with minimal noise and ripple. A recommended power supply design should include a low-dropout regulator (LDO) and adequate decoupling capacitors.
To troubleshoot issues with the DS90UB933TRTVTQ1, it is recommended to use oscilloscopes and logic analyzers to analyze the signal integrity and data transmission. Additionally, checking the device's configuration, clocking, and power supply can help identify the root cause of the issue.
The recommended settings for the DS90UB933TRTVTQ1's internal clock and PLL can be found in the device's datasheet and application notes. It is essential to follow these recommendations to ensure proper device operation and minimize jitter and skew.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UB933TRTVTQ1 Overview

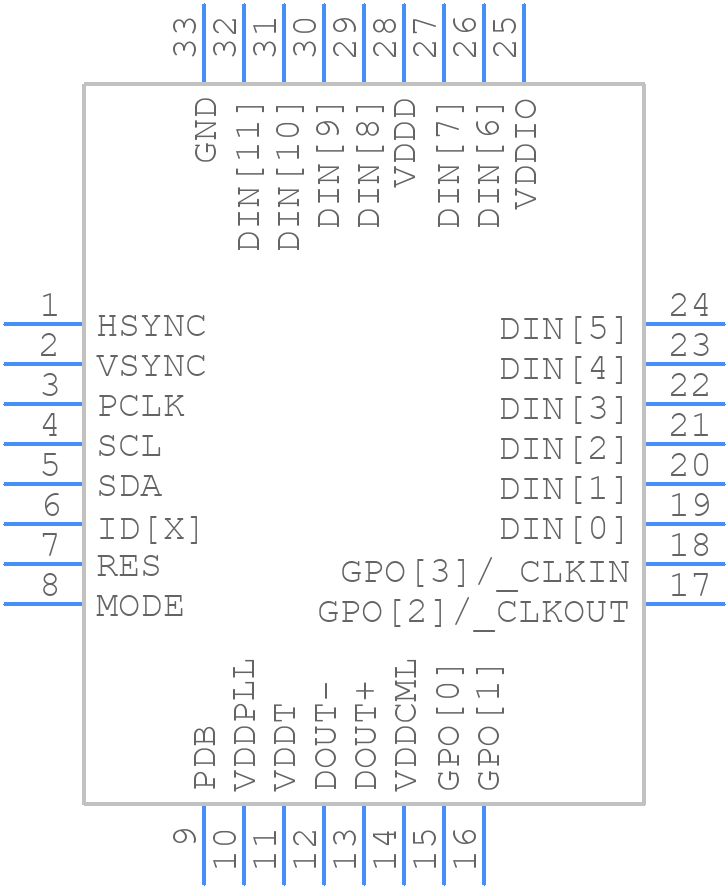

Use the download button to access the DS90UB933TRTVTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
