DS90UR908QSQE/NOPB - Texas Instruments

Description: 5 - 65 MHz 24-bit Color FPD-Link II to FPD-Link Converter

Download DS90UR908QSQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

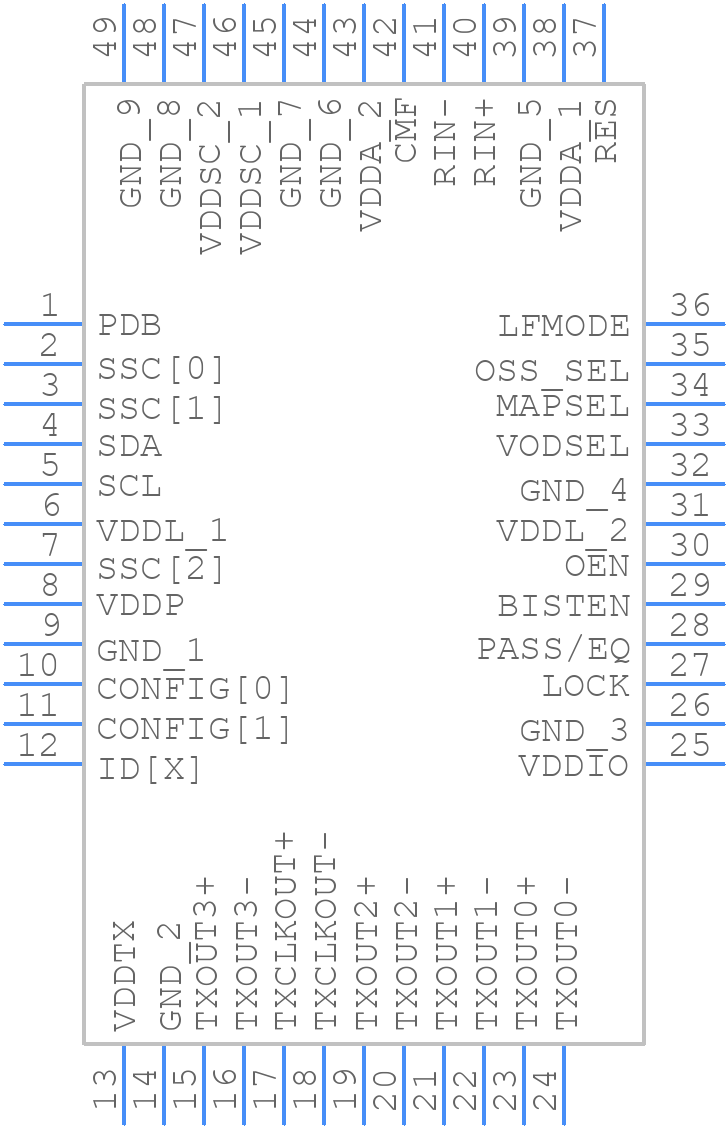

DS90UR908QSQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS90UR908QSQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom
3D Models
DS90UR908QSQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom

DS90UR908QSQE/NOPB Details

  • Manufacturer Part Number:

    DS90UR908QSQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LLP-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000015 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.1 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    95 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DS90UR908QSQE/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide in the application note SLVAUH7, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize EMI.
  • The DS90UR908QSQE/NOPB is a highly configurable device, and the configuration depends on the specific application requirements. Texas Instruments provides a software development kit (SDK) and a user guide that includes examples and guidelines for configuring the device for various applications.
  • The maximum cable length supported by the DS90UR908QSQE/NOPB depends on the specific application and the type of cable used. In general, the device supports cable lengths up to 10 meters at 3.125 Gbps and 5 meters at 6.25 Gbps. Signal integrity can be affected by cable length, and Texas Instruments provides guidelines for cable selection and signal conditioning in the application note SLVAUH7.
  • The DS90UR908QSQE/NOPB has built-in clock domain crossing and synchronization capabilities, which allow it to handle clock frequency changes and phase adjustments between the transmitter and receiver. The device uses a phase-locked loop (PLL) to generate a stable clock signal, and it also provides features such as clock domain crossing and synchronization to ensure data integrity.
  • The power consumption of the DS90UR908QSQE/NOPB depends on the specific application and operating conditions. The device has a typical power consumption of 1.2 W at 3.125 Gbps and 2.4 W at 6.25 Gbps. Thermal management is critical to ensure reliable operation, and Texas Instruments provides guidelines for thermal design and heat sinking in the application note SLVAUH7.
