Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for trace routing, component placement, and power supply decoupling to minimize signal integrity issues and ensure reliable operation.
The DS92LV2421SQ/NOPB is a highly configurable device, and the configuration depends on the specific application requirements. Texas Instruments provides a configuration tool, the DS92LV2421 Configurator, which allows designers to select the desired configuration options, such as data rate, lane configuration, and signal conditioning, and generates a configuration file that can be loaded into the device.
The maximum cable length supported by the DS92LV2421SQ/NOPB depends on the specific application and the type of cable used. In general, the device supports cable lengths up to 10 meters at data rates up to 2.7 Gbps. However, signal integrity issues may arise at longer cable lengths, and designers should consider using signal conditioning techniques, such as equalization and pre-emphasis, to compensate for signal degradation.
The DS92LV2421SQ/NOPB has built-in clock domain crossing (CDC) and skew compensation capabilities to ensure reliable data transmission across clock domains. The device uses a phase-locked loop (PLL) to generate a clock signal that is synchronized with the input data, and it also provides adjustable clock skew compensation to align the clock signal with the data signal.
The power consumption of the DS92LV2421SQ/NOPB depends on the specific application and operating conditions. In general, the device has a typical power consumption of around 1.2 W at 2.7 Gbps data rate. Thermal management is critical to ensure reliable operation, and designers should consider using heat sinks, thermal vias, and other thermal management techniques to keep the device temperature within the recommended operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS92LV2421SQ/NOPB Overview

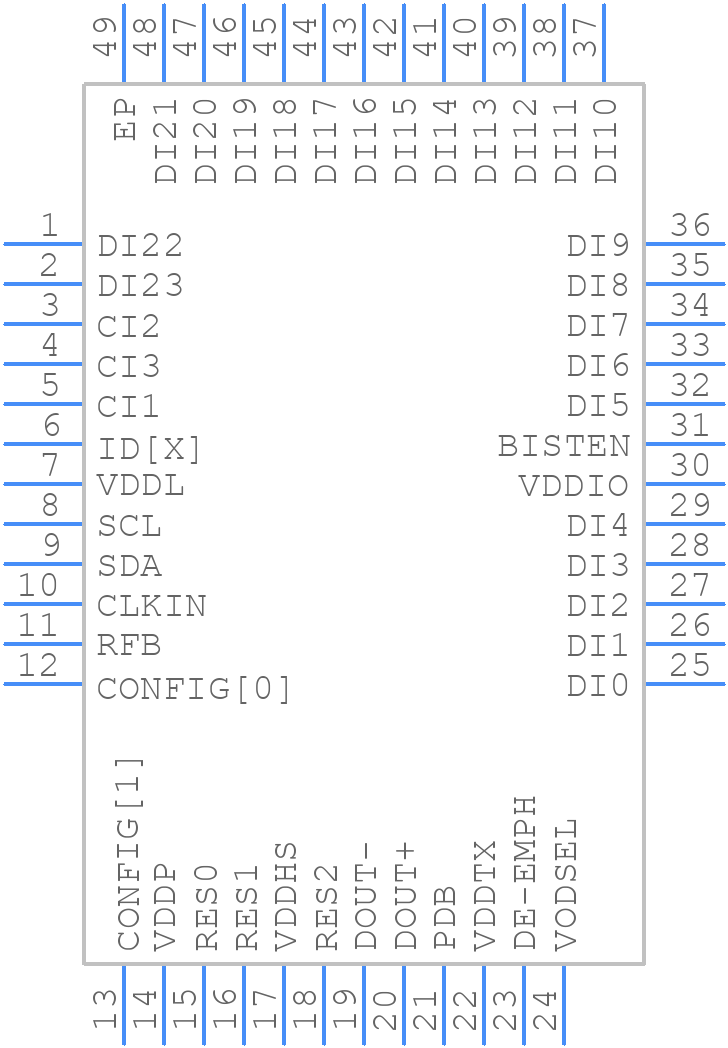

Use the download button to access the DS92LV2421SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92L,
or try a keyword search, such as Line Driver or Receivers
