Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply with capacitors.
To ensure reliable operation in high-temperature environments, it's recommended to follow the thermal design guidelines provided by Texas Instruments, including using a heat sink and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
The recommended termination scheme for the DS92LV2421SQE/NOPB is a 100-ohm differential termination at the receiver end. This helps to minimize reflections and ensure reliable data transmission.
To troubleshoot issues with the DS92LV2421SQE/NOPB, it's recommended to use oscilloscopes and logic analyzers to analyze the signal waveforms and data transmission patterns. Additionally, checking the PCB layout, power supply, and termination schemes can help identify the root cause of the issue.
Yes, the DS92LV2421SQE/NOPB is a high-speed device and requires careful consideration of EMI/EMC issues. It's recommended to follow the EMI/EMC guidelines provided by Texas Instruments, including using shielding, filtering, and grounding techniques to minimize electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS92LV2421SQE/NOPB Overview

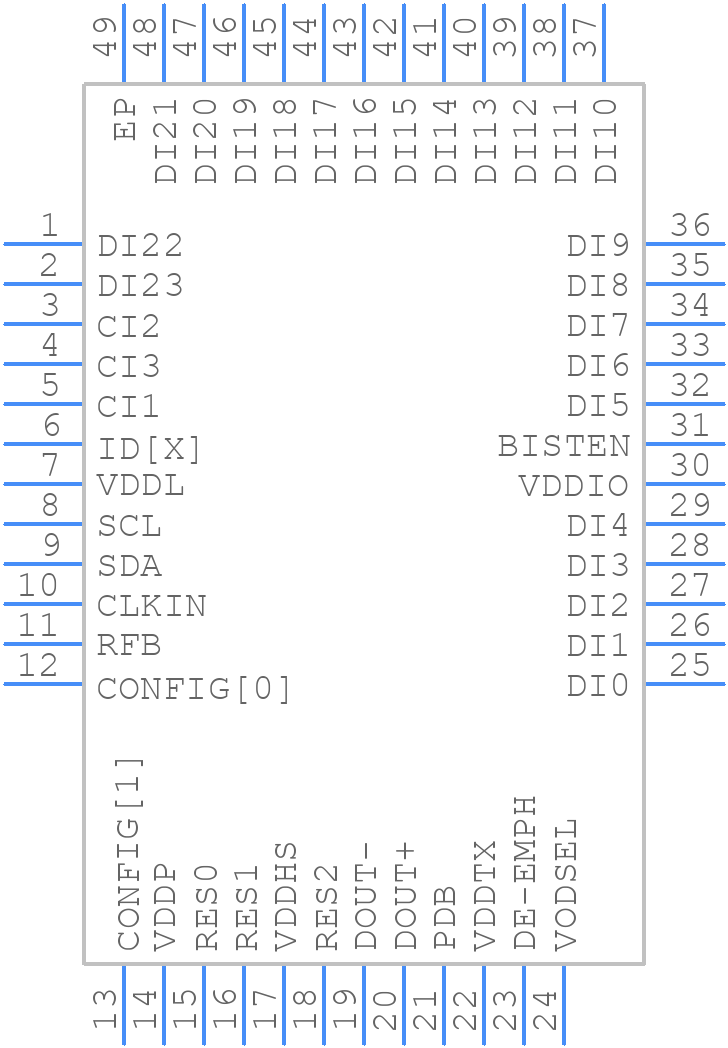

Use the download button to access the DS92LV2421SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
