Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity, it's recommended to use a differential signal pair with a 100-ohm differential impedance, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common-mode filter or a common-mode choke to reduce electromagnetic interference (EMI).
The maximum cable length supported by the DS92LV8028TUF/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters at a data rate of 1 Gbps. For longer cable lengths, it's recommended to use repeaters or active cables.
To troubleshoot issues with the DS92LV8028TUF/NOPB, it's recommended to use a logic analyzer or an oscilloscope to monitor the signal quality and detect any errors. Additionally, it's recommended to check the power supply voltage, the clock signal, and the reset signal to ensure they are within the recommended specifications.
Yes, the DS92LV8028TUF/NOPB is compatible with other FPD-Link III devices from Texas Instruments, as well as with other devices that comply with the FPD-Link III specification. However, it's recommended to verify compatibility with specific devices and systems before designing them into a production system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS92LV8028TUF/NOPB Overview

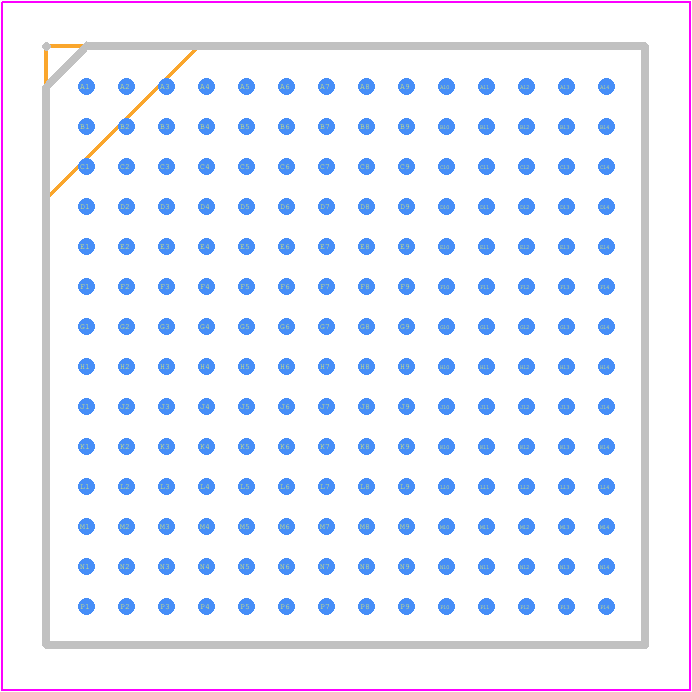

Use the download button to access the DS92LV8028TUF/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92L,
or try a keyword search, such as Line Driver or Receivers
