Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply pins with capacitors.
To ensure reliable operation in high-temperature environments, it's recommended to follow the thermal design guidelines provided in the datasheet, including keeping the junction temperature below 150°C and using a heat sink if necessary. Additionally, it's recommended to use a thermal interface material to improve heat transfer between the device and the heat sink.
The maximum cable length that can be driven by the DS99R102VS depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible to minimize signal attenuation and reflections. Texas Instruments recommends using a cable length of up to 10 meters for most applications.
To troubleshoot issues with the DS99R102VS, it's recommended to follow a systematic approach, including checking the power supply, signal integrity, and device configuration. Additionally, it's recommended to use oscilloscopes and logic analyzers to debug the signal waveforms and protocol transactions. Texas Instruments also provides a range of tools and resources, including application notes and FAQs, to help troubleshoot common issues.
Yes, the DS99R102VS is designed to be compatible with other Texas Instruments devices, including serializers and deserializers. In fact, the DS99R102VS is often used in conjunction with these devices to implement high-speed data transmission systems. Texas Instruments provides a range of devices and tools to support the development of these systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS99R102VS/NOPB Overview

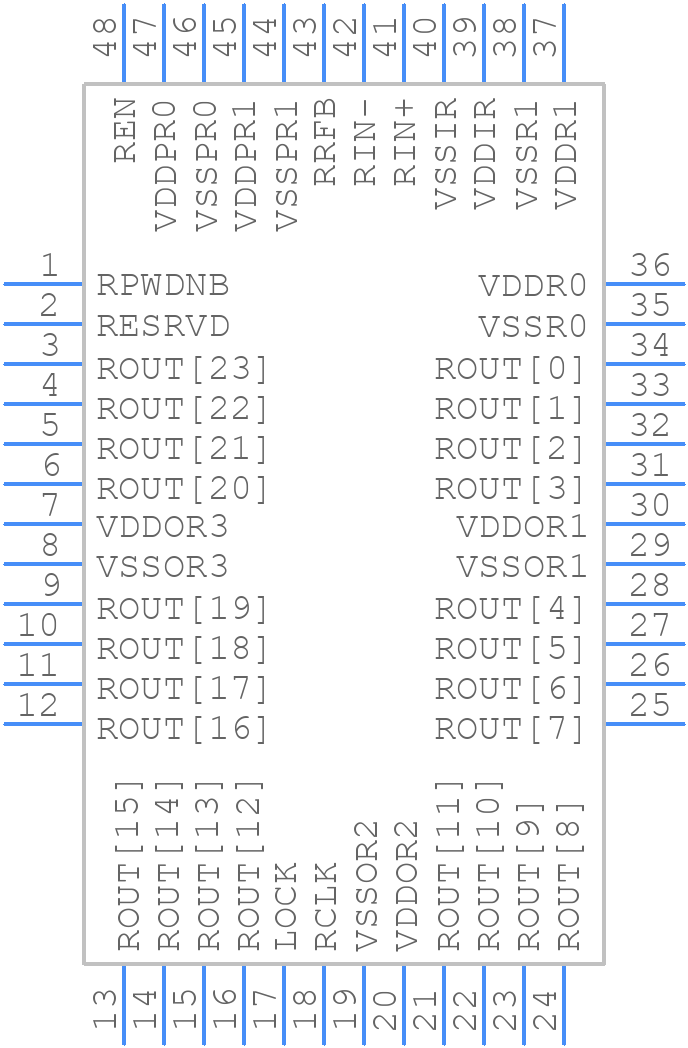

Use the download button to access the DS99R102VS/NOPB schematic symbol, PCB footprint, and 3D model.
