EEETG1E101P - Panasonic

Description: Aluminum Electrolytic Capacitors - SMD 100UF 25V ELECT TG SMD

Download EEETG1E101P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEETG1E101P - Panasonic - PCB symbol
click to zoom
PCB Footprints

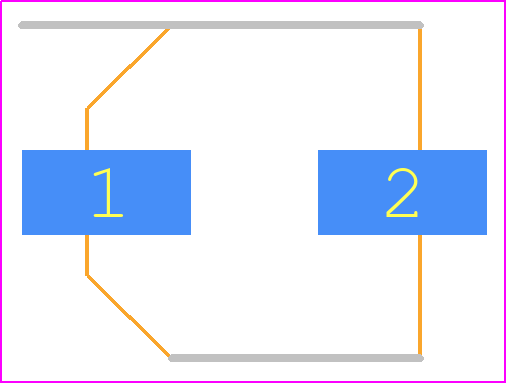

EEETG1E101P - Panasonic PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - EEE-TG1E101P
click to zoom
3D Models
EEETG1E101P - Panasonic - 3D model - Capacitor Al Electrolytic - EEE-TG1E101P
click to zoom

EEETG1E101P Details

  • Manufacturer Part Number:

    EEETG1E101P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR is MEASURED AT 100KHZ,

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    500 mΩ

  • Height:

    10.2 mm

  • Leakage Current:

    0.025 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    128.05 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.18

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

EEETG1E101P Frequently Asked Questions (FAQs)

  • Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • Yes, the EEETG1E101P is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G (98m/s²). However, it's recommended to consult with Panasonic's application notes and perform thorough testing to ensure the capacitor meets the specific requirements of your application.
  • The ESR of EEETG1E101P is not explicitly stated in the datasheet, but according to Panasonic's application notes, the typical ESR value for this capacitor is around 0.015Ω at 100kHz.
  • Yes, the EEETG1E101P is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The MSL of EEETG1E101P is level 2, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity without requiring special handling or packaging.
