Texas Instruments provides a recommended PCB layout in the FDC2112DNTR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The FDC2112DNTR does not require calibration for capacitance measurements. The device has an internal calibration mechanism that ensures accurate measurements. However, it's recommended to follow the application notes and guidelines provided by Texas Instruments for proper sensor design and layout to ensure accurate measurements.
The FDC2112DNTR can operate up to 1 MHz, but the maximum frequency of operation depends on the specific application and the sensor design. It's recommended to consult the datasheet and application notes for more information on frequency limitations and optimization techniques.
Yes, the FDC2112DNTR can be used for various capacitive sensing applications, including proximity sensing, gesture recognition, and material detection. The device's high sensitivity and accuracy make it suitable for a wide range of applications beyond touch sensing.
To handle noise and interference, it's recommended to follow proper PCB design and layout guidelines, use shielding and grounding techniques, and implement noise filtering and averaging algorithms in the system's firmware. Texas Instruments also provides application notes and guidelines for noise mitigation and interference handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDC2112DNTR Overview

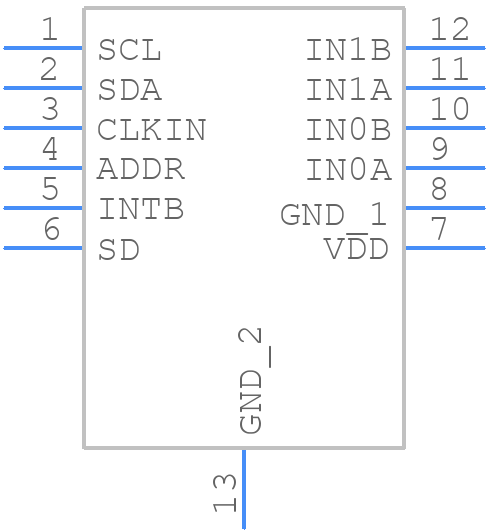

Use the download button to access the FDC2112DNTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDC21,
or try a keyword search, such as Other Signal Circuits
