FDC2112QDNTRQ1 - Texas Instruments

Description: 2-channel, Noise-immune, AEC-Q100 qualified, 12-bit Capacitive Sensing Solution

Download FDC2112QDNTRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

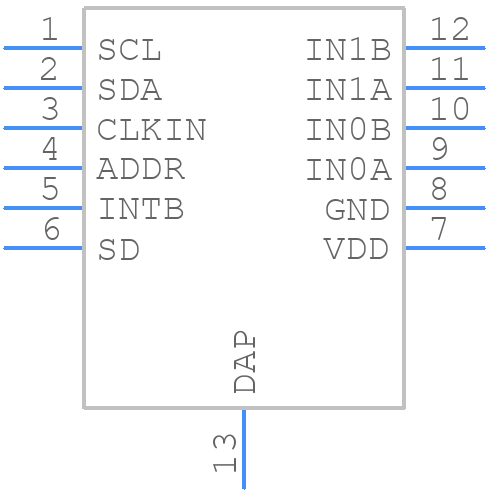

Symbol
FDC2112QDNTRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
FDC2112QDNTRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DNT0012B_2
click to zoom
3D Models
FDC2112QDNTRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DNT0012B_2
click to zoom

FDC2112QDNTRQ1 Details

  • Manufacturer Part Number:

    FDC2112QDNTRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

FDC2112QDNTRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between the VCC and GND pins to filter out noise.
  • Use a shielded cable to connect the sensor to the FDC2112QDNTRQ1. Ensure the sensor is properly calibrated and the measurement frequency is set correctly. Also, use a low-pass filter to remove noise and ensure the measurement is taken when the sensor is in a stable state.
  • The FDC2112QDNTRQ1 can measure capacitances up to 100pF with an accuracy of ±1.5%. However, the maximum capacitance range may vary depending on the sensor used and the application.
  • The FDC2112QDNTRQ1 has a digital interface that can be connected to a microcontroller using I2C or SPI protocols. Use a level shifter if the microcontroller operates at a different voltage level. Ensure the microcontroller can handle the data rate of the FDC2112QDNTRQ1.
  • The FDC2112QDNTRQ1 has a typical power consumption of 1.5mA at 1.8V supply voltage. However, the power consumption may vary depending on the operating frequency and the sensor used.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDC2112QDNTRQ1 Overview

Use the download button to access the FDC2112QDNTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDC21, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
