Part Image

FDMQ8205 - onsemi

Description: Low rDS(on) 80V Rated MOSFETs; Maximizing Available Power and Voltage ; Self Driving Circuitry for MOSFETs ; IEEE802.3at Compatible Meet Detection and Classification Requirement Work with 2 and 4-pair Architecture Small Backfeed Voltage; Low Power Loss GreenBridgeTM Replaces Diode Bridge; Compact MLP 4.5x5 Package ; Eliminating Thermal Design Problems

Download FDMQ8205 Model

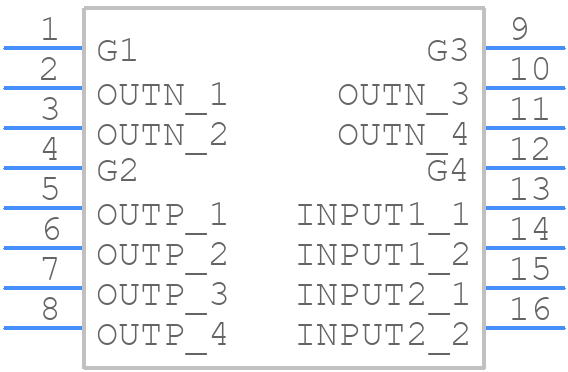

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMQ8205 - onsemi PCB footprint - Other - Other - FDMQ8205-4
click to zoom
3D Models
FDMQ8205 - onsemi  - 3D model - Other - FDMQ8205-4
click to zoom

FDMQ8205 Details

  • Manufacturer Part Number:

    FDMQ8205

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-12

  • Manufacturer Package Code:

    511CS

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.95

  • Configuration:

    COMPLEX

  • Drain Current-Max (ID):

    1.7 A

  • Drain-source On Resistance-Max:

    0.051 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    12

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDMQ8205 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FDMQ8205 is -40°C to 150°C.
  • To ensure proper biasing, connect VCC to a stable 5V power supply, and connect VEE to a stable -5V power supply. Also, ensure that the input voltage (VIN) is within the recommended range of 2.5V to 5.5V.
  • To minimize noise and EMI, use a multi-layer PCB with a solid ground plane, and keep the FDMQ8205 away from high-frequency signals. Use short, direct traces for power and ground connections, and avoid routing signals under the device.
  • To handle thermal dissipation, ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The FDMQ8205 has a thermal pad on the bottom, which can be connected to a heat sink or thermal pad for improved thermal performance.
  • The recommended input capacitance for the FDMQ8205 is 10nF to 100nF, depending on the specific application and frequency of operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDMQ8205 Overview

Use the download button to access the FDMQ8205 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDMQ8, or try a keyword search, such as Small Signal Field-Effect Transistors
