FDMQ8205A - onsemi

Description: Eliminating Thermal Design Problems ; Self Driving Circuitry for MOSFETs ; Low Power Loss GreenBridgeTM Replaces Diode Bridge ; Low rDS(on) 100V Rated MOSFETs ; Maximizing Available Power and Voltage ; Compact MLP 4.5x5 Package ; IEEE802.3at Compatible Meet Detection and Classification Requirement Work with 2 and 4-pair Architecture Small Backfeed Voltage

Download FDMQ8205A Model

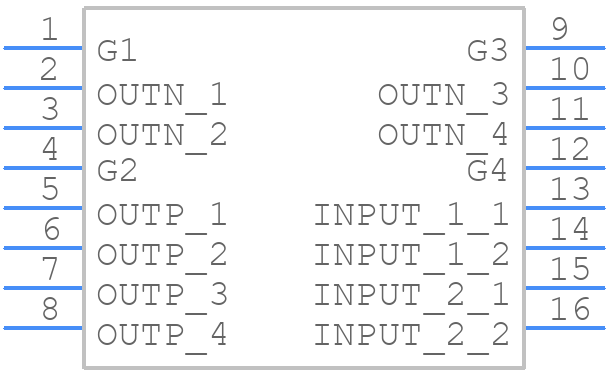

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMQ8205A - onsemi PCB footprint - Other - Other - WDFN12 5x4.5, 0.8P CASE 511CS ISSUE O
click to zoom
3D Models
FDMQ8205A - onsemi  - 3D model - Other - WDFN12 5x4.5, 0.8P CASE 511CS ISSUE O
click to zoom

FDMQ8205A Details

  • Manufacturer Part Number:

    FDMQ8205A

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-12

  • Manufacturer Package Code:

    511CS

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.95

  • Configuration:

    COMPLEX

  • Drain Current-Max (ID):

    1.7 A

  • Drain-source On Resistance-Max:

    0.051 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    12

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
