SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
25 V
Drain Current-Max (ID):
16 A
Drain-source On Resistance-Max:
0.0058 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
115 pF
JESD-30 Code:
R-PDSO-N6
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
6
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
2.3 W
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
FDMS3615S Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves using a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and placing thermal vias under the device to dissipate heat. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it is essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature.
The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage can cause permanent damage to the device.
Yes, the FDMS3615S is suitable for high-frequency switching applications up to 1 MHz. However, it is essential to follow the recommended layout guidelines and ensure that the device is properly decoupled to minimize ringing and EMI.
To troubleshoot issues with the device not turning on, check the input voltage, ensure that the enable pin is properly biased, and verify that the device is not in a fault condition. Also, check for any possible damage to the device or the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDMS3615S Overview

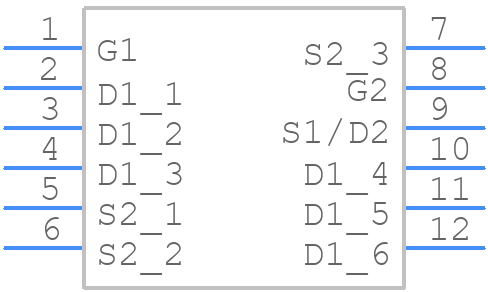

Use the download button to access the FDMS3615S schematic symbol, PCB footprint, and 3D model.
