FDMS3624S - onsemi

Description: Obsolete - Asymmetric Dual N-Channel PowerTrench Power Stage MOSFET, 25V

Download FDMS3624S Model

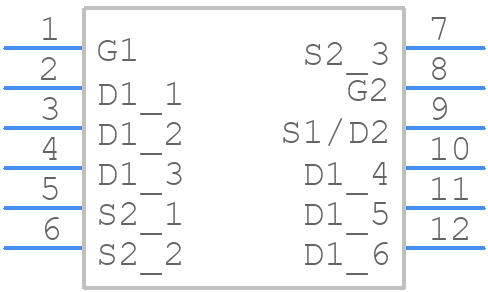

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMS3624S - onsemi PCB footprint - Other - Other - FDMS3624S-4
click to zoom
3D Models
FDMS3624S - onsemi  - 3D model - Other - FDMS3624S-4
click to zoom

FDMS3624S Details

  • Manufacturer Part Number:

    FDMS3624S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PQFN-8

  • Package Description:

    QFN-8

  • Manufacturer Package Code:

    483AJ

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    25 V

  • Drain Current-Max (ID):

    17.5 A

  • Drain-source On Resistance-Max:

    0.005 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2.5 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDMS3624S Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider derating the device's power handling capabilities at high temperatures.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device.
  • Yes, the FDMS3624S is suitable for high-frequency switching applications up to 1 MHz. However, it's essential to consider the device's switching losses, layout, and thermal performance to ensure reliable operation.
  • To protect the device from electrical overstress (EOS), use a suitable TVS diode or ESD protection device on the input pins, and ensure that the device is operated within its recommended voltage and current ratings.
