FDMS3660S - onsemi

Description: Q2: N-Channel Max rDS(on) = 1.8 mΩ at VGS = 10 V, ID = 30 A Max rDS(on) = 2.2 mΩ at VGS = 4.5 V, ID = 27 A ; Low inductance packaging shortens rise/fall times, resulting in lower switching losses ; Q1: N-Channel Max rDS(on) = 8 mΩ at VGS = 10 V, ID = 13 A Max rDS(on) = 11 mΩ at VGS = 4.5 V, ID = 11 A; MOSFET integration enables optimum layout for lower circuit inductance and reduced switch node ringing ; RoHS Compliant

Download FDMS3660S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

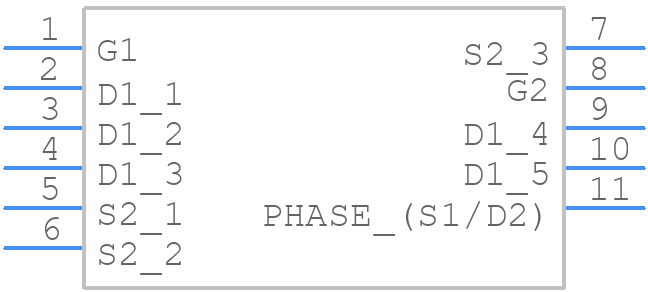

Symbol
FDMS3660S - onsemi - PCB symbol
click to zoom
PCB Footprints
FDMS3660S - onsemi PCB footprint - Other - Other - FDMS3660S
click to zoom
3D Models
FDMS3660S - onsemi - 3D model - Other - FDMS3660S
click to zoom

FDMS3660S Details

  • Manufacturer Part Number:

    FDMS3660S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PQFN-8

  • Package Description:

    QFN-8

  • Manufacturer Package Code:

    483AJ

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    SERIES, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    13 A

  • Drain-source On Resistance-Max:

    0.008 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    70 pF

  • JEDEC-95 Code:

    MO-240AA

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2.5 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDMS3660S Frequently Asked Questions (FAQs)

  • A good PCB layout for the FDMS3660S involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The EN pin should be tied to VCC or a digital signal to enable the device. The VIN pin should be connected to a stable input voltage source, and the VOUT pin should be connected to a load or a filter circuit.
  • The maximum allowable power dissipation of the FDMS3660S is 1.4W. Exceeding this limit can cause the device to overheat and potentially fail. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range.
  • To filter the output of the FDMS3660S, add a capacitor (e.g., 10uF) in parallel with the output pin (VOUT) to reduce high-frequency noise and ripple. Additionally, consider adding a low-pass filter (e.g., RC filter) to further reduce noise and ripple.
  • The recommended input voltage range for the FDMS3660S is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
