Part Image

FDPC8012S - onsemi

Description: Q2 N-Channel Max. RDS(on) = 2.2 mΩ at VGS = 4.5 V, ID = 23 A; MOSFET integration enables optimum layout for lower circuit inductance and reduced switch node ringing ; Q1 N-Channel Max. RDS(on) = 7.0 mΩ at VGS = 4.5 V, ID = 12 A; Low inductance packaging shortens rise/fall times, resulting in lower switching losses ; RoHS Compliant

Download FDPC8012S Model

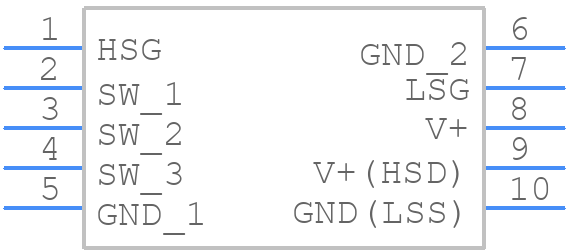

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDPC8012S - onsemi PCB footprint - Other - Other - PQFN8 3.3X3.3, 0.65P CASE 483AZ
click to zoom
3D Models
FDPC8012S - onsemi  - 3D model - Other - PQFN8 3.3X3.3, 0.65P CASE 483AZ
click to zoom

FDPC8012S Details

  • Manufacturer Part Number:

    FDPC8012S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PQFN-8

  • Package Description:

    3.30 X 3.30 MM, ROHS COMPLIANT, POWER CLIP 33, 8 PIN

  • Manufacturer Package Code:

    483AZ

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    25 V

  • Drain Current-Max (ID):

    13 A

  • Drain-source On Resistance-Max:

    0.007 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    MO-240BA

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDPC8012S Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermistor or thermal sensor to monitor the device temperature.
  • The maximum allowed voltage on the VIN pin is 28V, but it's recommended to keep it below 24V for reliable operation and to prevent damage to the internal voltage regulator.
  • Yes, the FDPC8012S is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended operating conditions and design guidelines.
  • Check the input voltage, ensure proper PCB layout, and verify that the enable pin is properly biased. Also, check for any short circuits or overload conditions that may be preventing the device from operating correctly.
