FODM611 - onsemi

Description: High Noise Immunity characterized by common mode transient immunity (CMTi) - 20kV/µs Minimum CMTi; High Speed – 10Mbit/sec Date Rate (NRZ) – 100ns max. Propagation Delay – 35ns max. Pulse Width Distortion– 40ns max. Propagation Delay Skew; -40 to +85°C temperature range; Safety and regulatory approvals – UL1577, 3750 VACRMS for 1 min.– IEC60747-5-2 (pending approval)

Download FODM611 Model

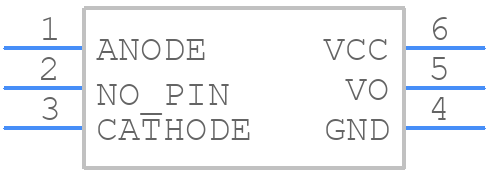

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FODM611 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MFP5
click to zoom
3D Models
FODM611 - onsemi  - 3D model - Small Outline Packages - MFP5
click to zoom

FODM611 Details

  • Manufacturer Part Number:

    FODM611

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MFP-5

  • Package Description:

    MINI-FLAT-5

  • Manufacturer Package Code:

    100AM

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    MICROPROCESSOR SYSTEM INTERFACE, UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    5e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FODM611 Frequently Asked Questions (FAQs)

  • A good PCB layout for FODM611 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure the input voltage is within the recommended range of 2.7V to 5.5V.
  • The maximum current rating of the FODM611 output is 100mA. Exceeding this rating may cause damage to the device or affect its reliability.
  • To protect the FODM611 from ESD and overvoltage, use a TVS diode or a zener diode on the input lines, and ensure the input voltage does not exceed the recommended maximum rating of 5.5V.
  • The recommended operating temperature range for FODM611 is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.
