FS20R06VE3 - Infineon

Description: IGBT Modules; transistor/transistor; IGBT half-bridge x3; Ic: 20A

Download FS20R06VE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

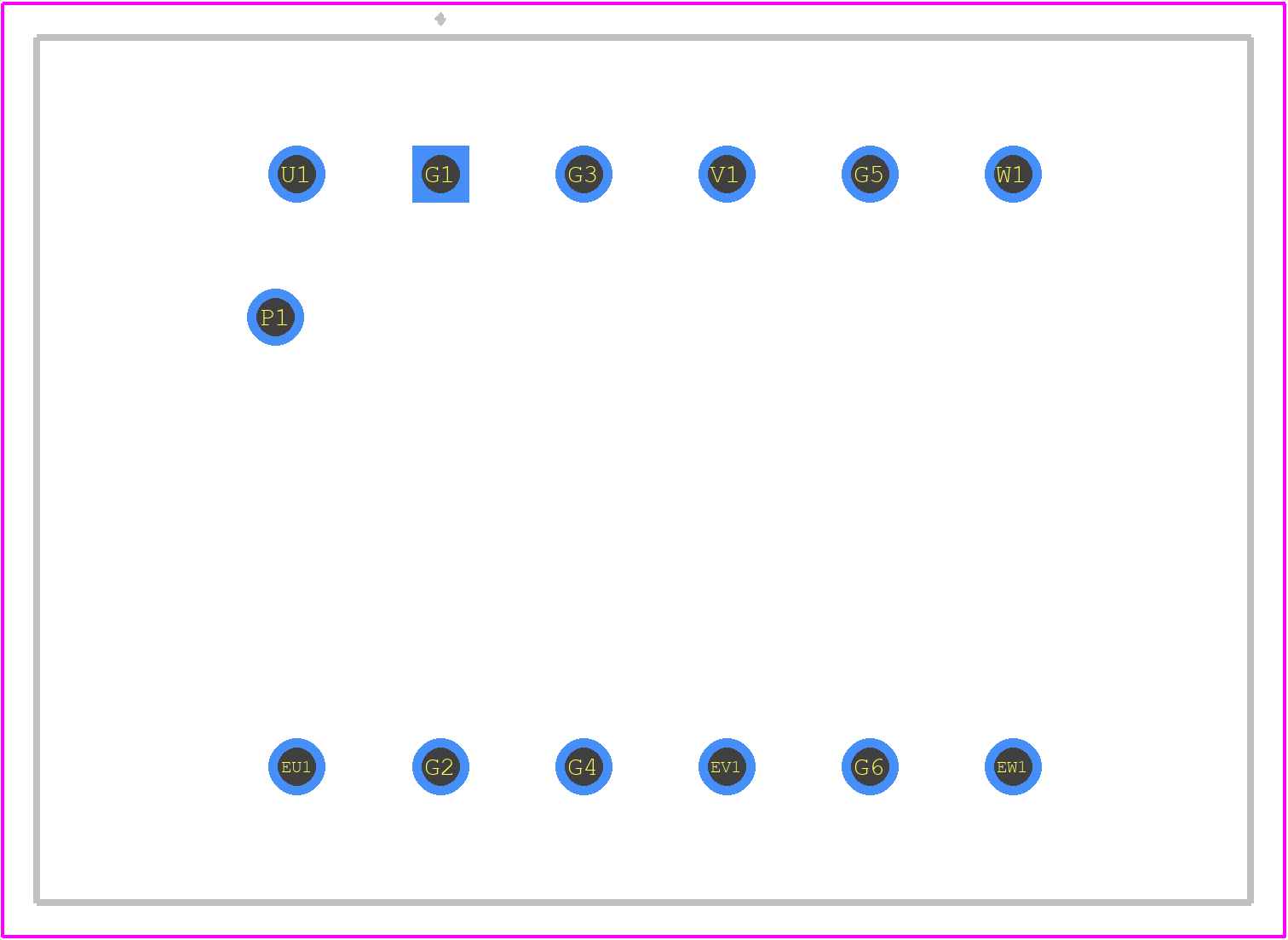

FS20R06VE3 - Infineon PCB footprint - Other - Other - FS20R06VE3-2
click to zoom
3D Models
FS20R06VE3 - Infineon  - 3D model - Other - FS20R06VE3-2
click to zoom

FS20R06VE3 Details

  • Manufacturer Part Number:

    FS20R06VE3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    13

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    25 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-W13

  • Number of Elements:

    6

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    71.5 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    250 ns

  • Turn-on Time-Nom (ton):

    320 ns

  • VCEsat-Max:

    2 V

FS20R06VE3 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
  • The gate resistor value depends on the specific application, switching frequency, and gate drive voltage. As a general guideline, Infineon recommends a gate resistor value between 1 ohm and 10 ohm. A higher value can reduce EMI, but may increase switching losses. Consult Infineon's application notes and simulation tools to determine the optimal value for your design.
  • According to Infineon, the maximum allowed voltage overshoot during turn-on and turn-off is 20% of the maximum drain-source voltage (VDS) rating, which is 600V for the FS20R06VE3. This means the maximum allowed voltage overshoot is 120V. Exceeding this limit can reduce the device's lifetime and reliability.
  • To ensure proper cooling, follow Infineon's thermal design guidelines, which include providing a sufficient heat sink, using thermal interface materials, and ensuring good airflow. The device's thermal resistance (Rth) should be kept below the maximum specified value. Consult Infineon's thermal simulation tools and application notes for more information.
  • The FS20R06VE3 is designed for high-frequency switching applications up to 100 kHz. However, the optimal operating frequency range depends on the specific application, load, and design requirements. Consult Infineon's application notes and simulation tools to determine the recommended frequency range for your design.
