A good PCB layout for the HD3SS3212RKSRQ1 involves keeping the high-speed signals away from the power planes, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the VCC pin to a 1.8V power supply, and configure the MODE pin according to the desired operating mode. Also, make sure to connect the RESET pin to a 1.8V power supply or a pull-up resistor to ensure proper reset functionality.
The HD3SS3212RKSRQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and to keep the device away from heat sources.
To troubleshoot issues with the HD3SS3212RKSRQ1, start by checking the power supply voltage, signal integrity, and clock signal quality. Use oscilloscopes and logic analyzers to debug the signals and identify the root cause of the issue. Also, consult the datasheet and application notes for troubleshooting guidelines.
The HD3SS3212RKSRQ1 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, grounding straps, and wrist straps to prevent damage to the device.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
HD3SS3212RKSRQ1 Overview

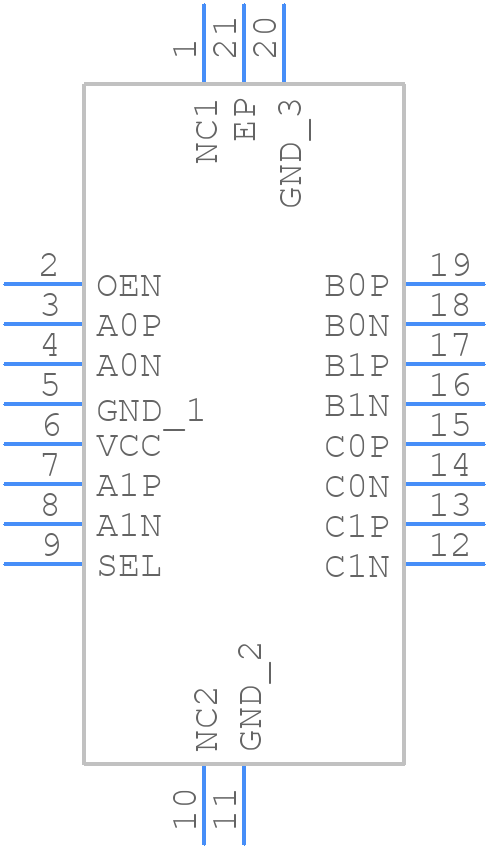

Use the download button to access the HD3SS3212RKSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
