HD3SS3212RKST - Texas Instruments

Description: Texas Instruments HD3SS3212RKST, USB Transceiver, USB 3.1 2-Port at 10Gbit/s, 2.7 → 3.6 V, 20-Pin VQFN

Download HD3SS3212RKST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

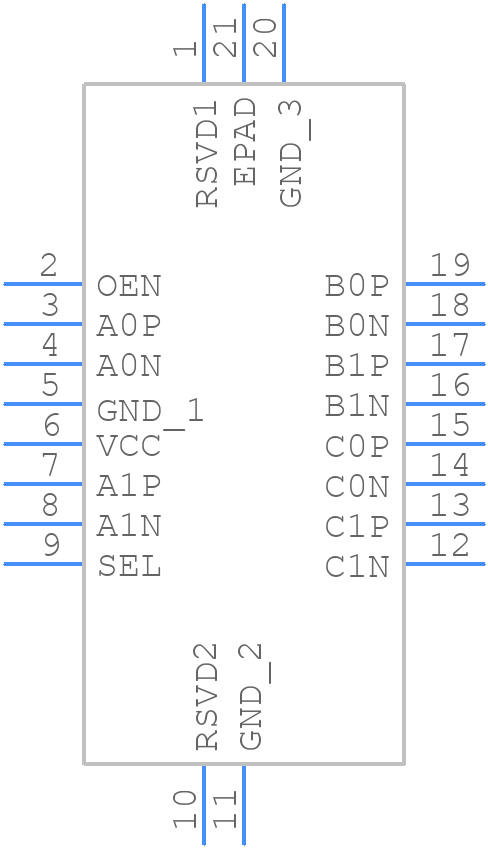

HD3SS3212RKST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS3212RKST - Texas Instruments PCB footprint - Other - Other - RKS0020A
click to zoom
3D Models
HD3SS3212RKST - Texas Instruments - 3D model - Other - RKS0020A
click to zoom

HD3SS3212RKST Details

  • Manufacturer Part Number:

    HD3SS3212RKST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 2:1 SPDT

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • Bandwidth-Nom:

    8000 MHz

  • Input Voltage-Max:

    4.5 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    0.5 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.1X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.8 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    500 ns

  • Switch-on Time-Max:

    500 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

HD3SS3212RKST Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the high-speed signals away from the power planes. Additionally, use a common mode filter and a shielded cable for the USB interface to minimize EMI.
  • The HD3SS3212RKST requires a 1.8V to 3.3V power supply, and the power sequencing is critical. The VCCIO pin should be powered up first, followed by the VCC pin. The VCCIO pin should be powered down last to prevent damage to the device.
  • The HD3SS3212RKST has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance.
  • The HD3SS3212RKST can be configured for USB 3.0 or USB 2.0 operation by setting the USB_SEL pin high or low, respectively. In USB 3.0 mode, the device supports SuperSpeed data rates up to 5 Gbps, while in USB 2.0 mode, it supports High-Speed data rates up to 480 Mbps.
  • The HD3SS3212RKST has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HD3SS3212RKST Overview

Use the download button to access the HD3SS3212RKST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS, or try a keyword search, such as Multiplexers or Switches
