Texas Instruments provides a recommended PCB layout in the HDC3020QDEFRQ1 datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the device is placed in a thermally conductive area to prevent overheating.
Calibration is not required for the HDC3020QDEFRQ1, as it is a calibrated device. However, it's essential to follow the recommended reflow soldering process to ensure the device is properly soldered and to avoid any damage during the assembly process. Additionally, ensure that the device is operated within the recommended temperature and humidity ranges.
The maximum cable length for the I2C interface depends on the system design and the capacitance of the bus. As a general rule, the I2C bus should be kept as short as possible (less than 10 inches or 25 cm) to minimize signal degradation and ensure reliable communication. If a longer cable length is required, consider using I2C bus extenders or repeaters.
The HDC3020QDEFRQ1 has a built-in POR and BOR feature to ensure the device resets properly during power-up and brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended voltage range. Additionally, consider adding external circuitry, such as a voltage supervisor, to detect and respond to power failures or brown-out conditions.
The HDC3020QDEFRQ1 has a response time of approximately 5 seconds for humidity measurements and 1 second for temperature measurements. However, this response time can vary depending on the system design, ambient conditions, and the device's operating mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HDC3020QDEFRQ1 Overview

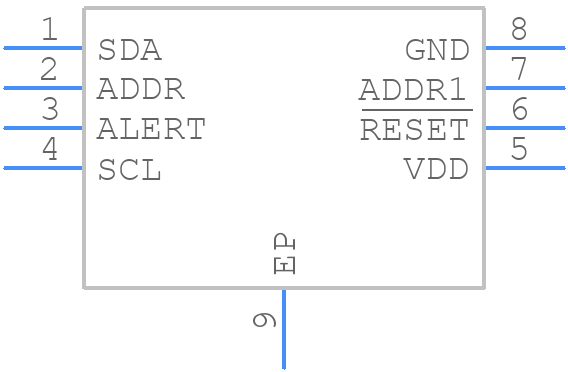

Use the download button to access the HDC3020QDEFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDC30,
or try a keyword search, such as Other Sensors/Transducers
