SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
HPA00169DGNR Frequently Asked Questions (FAQs)
A good PCB layout for the HPA00169DGNR involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Texas Instruments provides a recommended PCB layout in the datasheet.
To ensure proper biasing, follow the recommended biasing circuit in the datasheet, which includes a voltage divider network to set the output common-mode voltage. Additionally, ensure the input signals are within the recommended common-mode voltage range.
The maximum power dissipation of the HPA00169DGNR is 1.4W. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature within the recommended range.
Use a combination of filtering techniques, such as RC filters, ferrite beads, and shielding, to minimize noise and EMI. Additionally, follow proper PCB layout and grounding practices to reduce noise coupling.
The recommended operating temperature range for the HPA00169DGNR is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HPA00169DGNR Overview

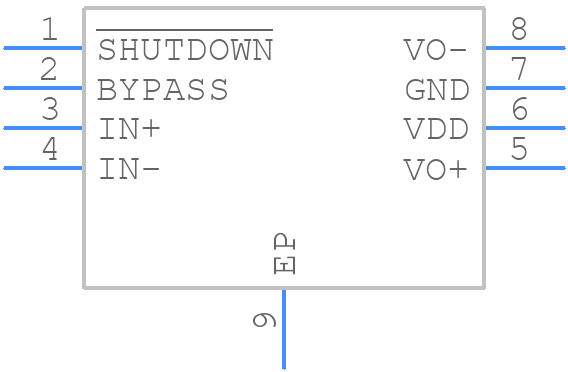

Use the download button to access the HPA00169DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HPA00,
or try a keyword search, such as Audio/Video Amplifiers
