INA105KU/2K5 - Texas Instruments

Description: Precision Unity Gain Differential Amplifier SOIC 8L

Download INA105KU/2K5 Model

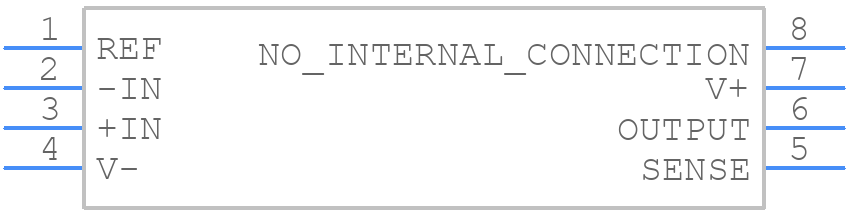

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA105KU/2K5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - (D0008A-H=1.75
click to zoom
3D Models
INA105KU/2K5 - Texas Instruments  - 3D model - Small Outline Packages - (D0008A-H=1.75
click to zoom

INA105KU/2K5 Details

  • Manufacturer Part Number:

    INA105KU/2K5

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    3 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Max:

    1

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    1

  • Wideband:

    NO

  • Width:

    3.9 mm

INA105KU/2K5 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the INA105KU/2K5 is 670mW at 25°C. However, it's recommended to derate the power dissipation to 500mW or less to ensure reliable operation.
  • To ensure accuracy in high-temperature applications, it's essential to consider the temperature coefficient of the INA105KU/2K5. The device has a temperature coefficient of 10ppm/°C, which means that the gain error will increase by 10ppm for every degree Celsius change in temperature. You can use external components to compensate for this temperature coefficient or use a thermistor to monitor the temperature and adjust the gain accordingly.
  • To minimize noise and interference, it's recommended to follow a star-grounding layout, where the analog and digital grounds are separated and connected at a single point. Place the INA105KU/2K5 close to the signal source, and use a ground plane to shield the device from electromagnetic interference. Additionally, use decoupling capacitors to filter out high-frequency noise and ensure a stable power supply.
  • The gain error of the INA105KU/2K5 can be calculated using the following formula: Gain Error (%) = (Vos / Vref) x 100, where Vos is the input offset voltage and Vref is the reference voltage. The input offset voltage can be found in the datasheet, and the reference voltage depends on the specific application. For example, if the input offset voltage is 100μV and the reference voltage is 2.5V, the gain error would be 4%.
  • The recommended input impedance for the INA105KU/2K5 is 1kΩ or higher. This ensures that the input signal is not attenuated and that the device operates within its specified gain range. However, the input impedance can be adjusted based on the specific application requirements, such as noise filtering or signal conditioning.
