INA105KU/2K5E4 - Texas Instruments

Description: Differential Amplifiers Precision Unity Gain

Download INA105KU/2K5E4 Model

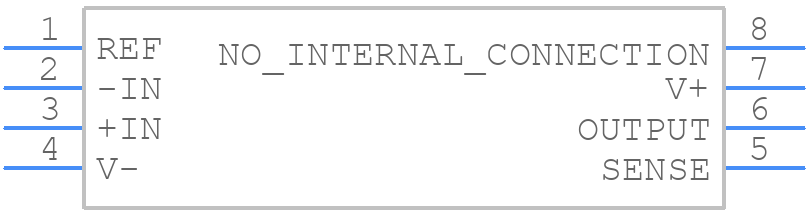

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA105KU/2K5E4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
INA105KU/2K5E4 - Texas Instruments  - 3D model - Small Outline Packages - D
click to zoom

INA105KU/2K5E4 Details

  • Manufacturer Part Number:

    INA105KU/2K5E4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    3 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Max:

    1

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    1

  • Wideband:

    NO

  • Width:

    3.9 mm

INA105KU/2K5E4 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the INA105KU/2K5E4 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
  • To minimize noise and ensure accurate measurements, it is recommended to follow proper PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, the INA105KU/2K5E4 should be placed close to the signal source and the input signals should be routed directly to the device.
  • The recommended input impedance for the INA105KU/2K5E4 is 1kΩ or higher. This ensures that the input voltage is not loaded down and the device can operate within its specified input range.
  • The INA105KU/2K5E4 is designed for low-frequency applications up to 50kHz. While it may be possible to use it for higher frequencies, the device's performance may degrade, and it may not meet the required specifications. For high-frequency applications, a different device may be more suitable.
  • The gain error of the INA105KU/2K5E4 can be calculated using the formula: Gain Error (%) = (Vout - (Vcm x Gain)) / (Vcm x Gain) x 100, where Vout is the output voltage, Vcm is the common-mode voltage, and Gain is the specified gain of the device.
