INA105KUE4 - Texas Instruments

Description: INA105KUE4 Texas Instruments, Differential Amplifier 8-Pin SOIC

Download INA105KUE4 Model

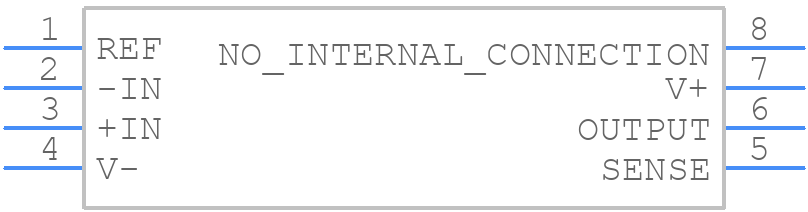

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA105KUE4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
INA105KUE4 - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

INA105KUE4 Details

  • Manufacturer Part Number:

    INA105KUE4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    3 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Max:

    1

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    1

  • Wideband:

    NO

  • Width:

    3.9 mm

INA105KUE4 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the INA105KUE4 is 670mW at 25°C. However, it's recommended to derate the power dissipation based on the ambient temperature and thermal resistance.
  • To ensure accuracy in high-temperature applications, it's essential to consider the temperature coefficient of the INA105KUE4. The device has a temperature coefficient of 100ppm/°C, which means the gain error will increase with temperature. You can use external components to compensate for this error or use a thermocouple to monitor the temperature and adjust the gain accordingly.
  • To minimize noise and EMI, it's recommended to follow a star-grounding scheme, keeping the analog and digital grounds separate. Place the INA105KUE4 close to the signal source, and use a ground plane to shield the device. Keep the input traces short and use a low-impedance path to the input pins. Avoid running digital signals near the analog signals, and use a common-mode filter to reduce EMI.
  • The input impedance of the INA105KUE4 is dependent on the gain setting and the input frequency. The datasheet provides a graph showing the input impedance vs. frequency. You can use this graph to estimate the input impedance for your specific application. Alternatively, you can calculate the input impedance using the formula: Zin = (Rg + Rf) / (1 + G), where Rg is the gain resistor, Rf is the feedback resistor, and G is the gain.
  • The recommended gain setting for the INA105KUE4 depends on the specific application and the desired signal-to-noise ratio. As a general rule, it's recommended to set the gain to the minimum required to achieve the desired signal amplitude. This will help to minimize noise and maximize the signal-to-noise ratio. A good starting point is to set the gain to 10-20 dB, and then adjust as needed based on the application requirements.
