INA1650IPWR - Texas Instruments

Description: Audio Transmitters, Receivers, Transceivers INA1650 SoundPlus High Common-Mode Rejection, Low Distortion Differential Line Receiver 14-TSSOP -40 to 125

Download INA1650IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

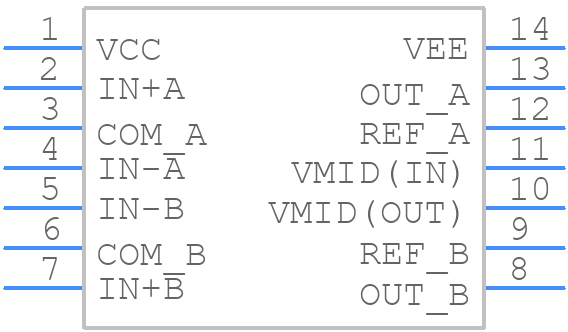

Symbol
INA1650IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA1650IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
INA1650IPWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

INA1650IPWR Details

  • Manufacturer Part Number:

    INA1650IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-12-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.35 V

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

INA1650IPWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the INA1650IPWR involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain setting of the INA1650IPWR depends on the specific application requirements. A good starting point is to set the gain to 20 dB (Rgain = 1 kΩ) and adjust from there based on the desired signal-to-noise ratio and output voltage swing.
  • The INA1650IPWR can handle input voltages up to ±10 V, but the maximum input voltage is limited by the power supply voltage (VS) minus 2 V. For example, with a 5 V power supply, the maximum input voltage is ±3 V.
  • To filter out noise and interference, use a low-pass filter (e.g., RC filter) at the input of the INA1650IPWR, and consider adding a ferrite bead or common-mode choke to the input traces to reduce electromagnetic interference (EMI).
  • Decouple the power supply (VS) with a 10 μF ceramic capacitor and a 100 nF ceramic capacitor in parallel, placed close to the device. This helps to reduce power supply noise and ensure stable operation.
