The maximum power dissipation of INA2126EA/2K5 is dependent on the operating temperature and package type. For the 2K5 package, the maximum power dissipation is approximately 670mW at 25°C. However, it's recommended to check the thermal characteristics and power dissipation calculations in the datasheet to ensure safe operation.
To minimize noise and ensure accurate measurements, it's recommended to follow proper PCB layout techniques such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, ensure that the input and output traces are properly shielded and routed to minimize electromagnetic interference (EMI).
The recommended input impedance for INA2126EA/2K5 is typically in the range of 1kΩ to 10kΩ. However, the optimal input impedance depends on the specific application and signal source. It's recommended to consult the datasheet and application notes for more information on input impedance and signal conditioning.
INA2126EA/2K5 is designed for low-frequency applications up to 50kHz. While it may be possible to use it for higher frequency applications, its performance may degrade significantly. For high-frequency applications, it's recommended to consider other amplifiers specifically designed for high-frequency operation.
Calibration of INA2126EA/2K5 typically involves adjusting the gain and offset to match the specific application requirements. This can be done using external resistors and potentiometers, or through digital calibration using a microcontroller or other digital interface. Consult the datasheet and application notes for more information on calibration procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA2126EA/2K5 Overview

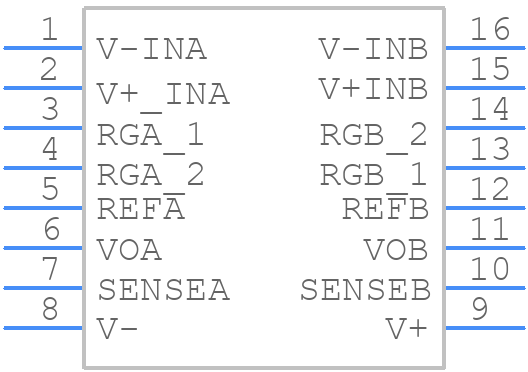

Use the download button to access the INA2126EA/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA21,
or try a keyword search, such as Instrumentation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
