INA233AIDGSR - Texas Instruments

Description: Current Sense Amplifiers High Accuracy Current, Voltage, Power and Energy Monitor With 1.8V I2C/PMBus 10-VSSOP -40 to 125

Download INA233AIDGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

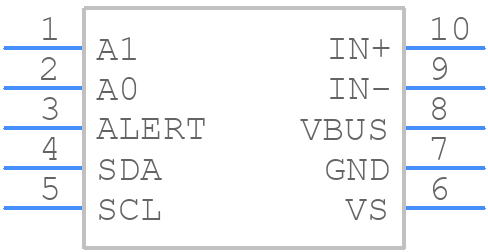

Symbol
INA233AIDGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA233AIDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP
click to zoom
3D Models
INA233AIDGSR - Texas Instruments - 3D model - Small Outline Packages - VSSOP
click to zoom

INA233AIDGSR Details

  • Manufacturer Part Number:

    INA233AIDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

INA233AIDGSR Frequently Asked Questions (FAQs)

  • The maximum power dissipation of INA233AIDGSR is 670mW at 25°C. However, it's recommended to derate the power dissipation based on the ambient temperature and thermal resistance of the package.
  • To optimize the layout, keep the analog and digital grounds separate, use a solid ground plane, and place the INA233AIDGSR close to the analog signal source. Also, use a low-ESR capacitor for decoupling and keep the traces short and direct.
  • The recommended input impedance for INA233AIDGSR is between 1kΩ and 10kΩ. This ensures optimal performance and minimizes the impact of input bias current on the measurement accuracy.
  • While INA233AIDGSR is suitable for high-frequency applications, its bandwidth is limited to 35kHz. For higher frequency applications, consider using a different amplifier or adding an external filter to improve the signal-to-noise ratio.
  • To calibrate INA233AIDGSR, apply a known input voltage and adjust the offset voltage to zero. Then, apply a known input current and adjust the gain to match the expected output voltage. Repeat this process for different input ranges to ensure accurate measurements.
