INA350ABSIDSGR - Texas Instruments

Description: Instrumentation Amplifiers

Download INA350ABSIDSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

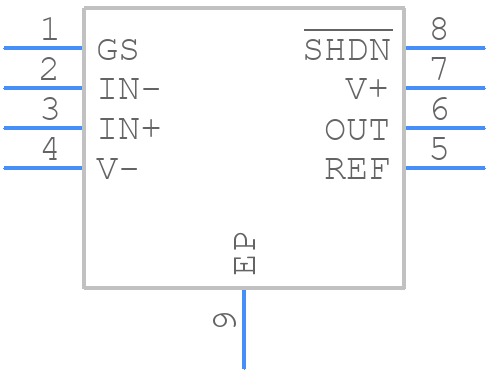

Symbol
INA350ABSIDSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA350ABSIDSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG
click to zoom
3D Models
INA350ABSIDSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG
click to zoom

INA350ABSIDSGR Details

  • Manufacturer Part Number:

    INA350ABSIDSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.1 MHz

  • Bias Current-Max (IIB) @25C:

    0.00003 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Input Offset Voltage-Max:

    1200 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.24 V/us

  • Supply Current-Max:

    0.135 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    50

  • Voltage Gain-Min:

    10

  • Voltage Gain-Nom:

    20

  • Width:

    2 mm

INA350ABSIDSGR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is 26V, but it's recommended to keep it below 24V to ensure accurate measurements.
  • The gain of the amplifier is fixed at 20V/V, which means that the output voltage will be 20 times the input voltage. You can use this gain to calculate the output voltage based on the input voltage.
  • The REF pin is used to set the reference voltage for the amplifier. It's typically connected to a voltage reference or a voltage divider to set the output voltage range. The REF pin should be connected to a stable voltage source to ensure accurate measurements.
  • The INA350ABSIDSGR is designed for low-frequency applications, typically up to 100 kHz. While it may work for higher frequencies, its performance may degrade, and it's not recommended for high-frequency applications above 1 MHz.
  • To minimize noise and interference, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a ground plane, and placing the INA350ABSIDSGR close to the input signal source. Additionally, use shielding and filtering components, such as capacitors and resistors, to reduce electromagnetic interference (EMI).
