INA351CDSIDSGR - Texas Instruments

Description: Instrumentation Amplifier 1 Circuit Single-Ended 8-WSON (2x2)

Download INA351CDSIDSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

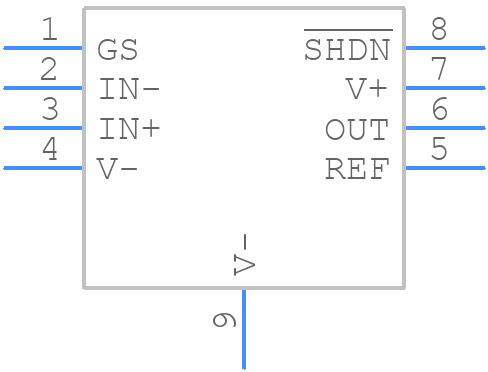

Symbol
INA351CDSIDSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA351CDSIDSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON 8
click to zoom
3D Models
INA351CDSIDSGR - Texas Instruments - 3D model - Small Outline No-lead - WSON 8
click to zoom

INA351CDSIDSGR Details

  • Manufacturer Part Number:

    INA351CDSIDSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.1 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Voltage-Max:

    1300 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.2 V/us

  • Supply Current-Max:

    0.147 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    50

  • Voltage Gain-Min:

    10

  • Width:

    2 mm

INA351CDSIDSGR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is 2.5V above the supply voltage (VCC) or 18V, whichever is lower.
  • To ensure accurate measurements, make sure to follow proper PCB layout and grounding techniques, use a low-noise power supply, and minimize electromagnetic interference (EMI) and radio-frequency interference (RFI) in the circuit.
  • The INA351's accuracy can be affected by temperature changes. The device has a specified temperature range of -40°C to 125°C, and its accuracy may degrade outside of this range. It's essential to consider temperature compensation and calibration when using the INA351 in high-temperature applications.
  • Yes, the INA351 can be used with a single-supply voltage. However, the input common-mode voltage range is limited to VCC - 1.5V to VCC + 0.5V. Ensure that the input signal is within this range to maintain accurate measurements.
  • The gain error of the INA351 can be calculated using the formula: Gain Error (%) = (VOUT / (VIN * GAIN)) - 1, where VOUT is the output voltage, VIN is the input voltage, and GAIN is the gain setting. The gain error is typically specified in the datasheet as a percentage of the full-scale output voltage.
