The maximum power dissipation of the INA700AYWFR is 670mW at 25°C, but it can be derated to 500mW at 85°C. It's essential to ensure the device operates within the recommended power dissipation to prevent overheating and ensure reliability.
To minimize noise and ensure accurate measurements, it's crucial to follow proper PCB layout techniques. Keep the input traces short and away from noise sources, use a ground plane, and ensure the layout is symmetrical. Additionally, use a low-impedance path for the output and decouple the power supply pins with capacitors.
The recommended input impedance for the INA700AYWFR is 1kΩ to 10kΩ. This impedance range ensures the device operates within its specified common-mode rejection ratio (CMRR) and gain accuracy. Impedances outside this range may affect the device's performance.
The INA700AYWFR is rated for operation from -40°C to 125°C. However, the device's accuracy and linearity may degrade at high temperatures. It's essential to consider the device's temperature coefficient and ensure the system design can accommodate any potential errors or drift.
To protect the INA700AYWFR from EMI, use shielding, filtering, and grounding techniques. Ensure the device is placed in a shielded enclosure, and use filters on the input and output lines. Additionally, use a low-pass filter on the power supply lines and ensure the PCB has a solid ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA700AYWFR Overview

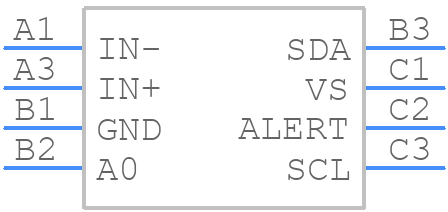

Use the download button to access the INA700AYWFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA70,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
