Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout ensures optimal performance, reduced EMI, and improved reliability.
Proper power supply decoupling is crucial for the ISO5852SMDWREP. Use a low-ESR capacitor (e.g., 10uF) close to the device, and ensure the power supply rails are well-filtered and regulated. Additionally, follow the recommended power-up and power-down sequencing in the datasheet.
The ISO5852SMDWREP has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a thermal pad or heat sink, and follow the recommended PCB layout for thermal management. Avoid overheating by keeping the device within the recommended operating temperature range.
Start by reviewing the datasheet and application notes for common pitfalls and troubleshooting guidelines. Use oscilloscopes or logic analyzers to debug signal integrity issues. Check for proper power supply, decoupling, and thermal management. If issues persist, consult Texas Instruments' support resources or contact their technical support team.
Yes, the ISO5852SMDWREP is a high-speed digital isolator, and EMI/EMC considerations are crucial. Follow the recommended PCB layout, use shielding, and implement proper grounding and filtering techniques to minimize EMI. Ensure compliance with relevant EMC standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO5852SMDWREP Overview

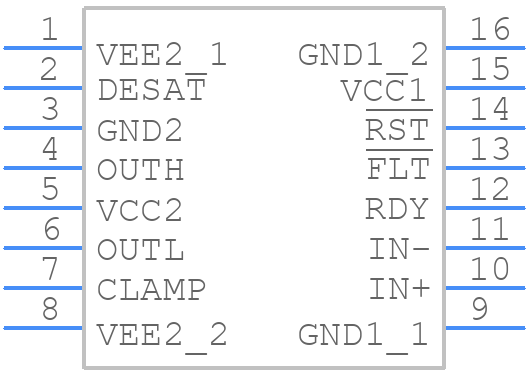

Use the download button to access the ISO5852SMDWREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO58,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
