ISO721MMDREP - Texas Instruments

Description: Enhanced Product Single 150Mbps Digital Isolator

Download ISO721MMDREP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

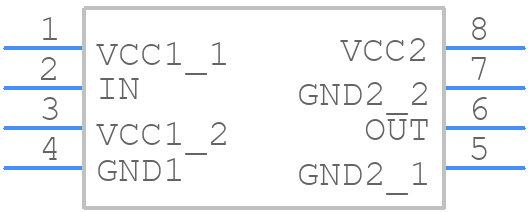

ISO721MMDREP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO721MMDREP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
ISO721MMDREP - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

ISO721MMDREP Details

  • Manufacturer Part Number:

    ISO721MMDREP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH 5V SUPPLY

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

ISO721MMDREP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISO721MMDREP involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • The ISO721MMDREP requires a single 3.3V or 5V power supply. Ensure that the power supply is stable and well-regulated. Power sequencing is not critical, but it's recommended to power up the VCC pin before the input signals.
  • The ISO721MMDREP can support data rates up to 100 Mbps, making it suitable for high-speed digital isolators in industrial and automotive applications.
  • The input capacitance of the ISO721MMDREP is typically around 10 pF, while the output capacitance is around 5 pF. Ensure that the PCB layout and component selection take these capacitance values into account to minimize signal distortion and ensure reliable operation.
  • The ISO721MMDREP is certified to IEC 60601-1, IEC 61010-1, and UL 1577 standards, ensuring safe operation in medical, industrial, and automotive applications. Ensure that the device is used within its specified operating conditions and follow proper safety precautions during handling and installation.
