ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY
Interface IC Type:
DIGITAL ISOLATOR
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
10.3 mm
Moisture Sensitivity Level:
2
Number of Channels:
3
Number of Functions:
3
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Screening Level:
IEC 62368-1
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
ISO7730FDW Frequently Asked Questions (FAQs)
The maximum data rate of the ISO7730FDW is 100 Mbps, but it can be limited by the capacitance of the isolation barrier and the signal integrity of the system.
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines provided in the datasheet, including keeping the junction temperature below 150°C and using a suitable heat sink if necessary.
Yes, the ISO7730FDW is designed to meet the requirements of safety-critical applications, including IEC 60601-1 and IEC 61508. However, it is essential to follow the safety guidelines and certifications provided by Texas Instruments and to perform thorough testing and validation.
To troubleshoot issues with the ISO7730FDW, it is recommended to follow a systematic approach, including checking the power supply, signal integrity, and clock synchronization. Additionally, using debugging tools, such as logic analyzers or oscilloscopes, can help identify the root cause of the issue.
Yes, the ISO7730FDW is designed to provide high immunity to electromagnetic interference (EMI) and can be used in applications with high EMI. However, it is essential to follow proper PCB design and layout guidelines to minimize the impact of EMI on the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7730FDW Overview

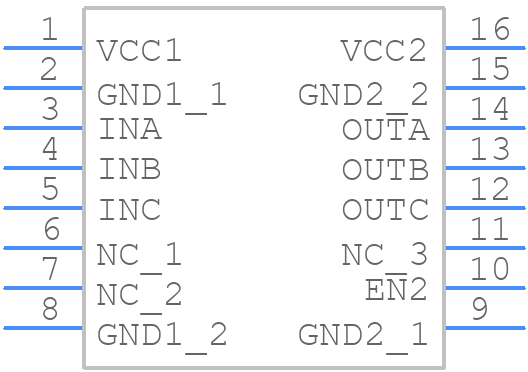

Use the download button to access the ISO7730FDW schematic symbol, PCB footprint, and 3D model.
