ISO7760FQDBQRQ1 - Texas Instruments

Description: Digital Isolator CMOS 6-CH 100Mbps Automotive 16-Pin SSOP T/R

Download ISO7760FQDBQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

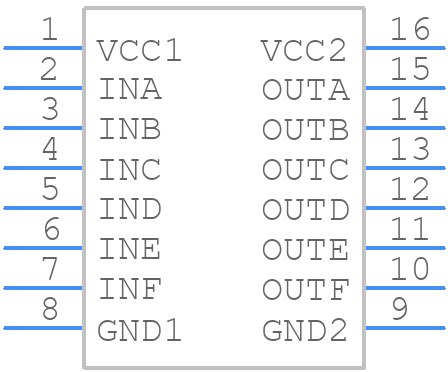

Symbol
ISO7760FQDBQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7760FQDBQRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
ISO7760FQDBQRQ1 - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

ISO7760FQDBQRQ1 Details

  • Manufacturer Part Number:

    ISO7760FQDBQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR
