A good PCB layout for the ISO7760FQDWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure reliable communication, use a proper UART or SPI protocol, ensure correct baud rate and data bit settings, and implement error checking mechanisms such as checksums or CRC. Also, ensure the microcontroller's clock frequency is within the recommended range.
The ISO7760FQDWRQ1 requires a specific power sequencing to prevent latch-up or damage. The recommended power-up sequence is VCC, then VIO, and finally the input signals. The power-down sequence should be reversed.
To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and avoid high ambient temperatures. The device's thermal pad should be connected to a solid ground plane to dissipate heat efficiently.
The ISO7760FQDWRQ1 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials, handle the device by the body, and avoid touching the pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7760FQDWRQ1 Overview

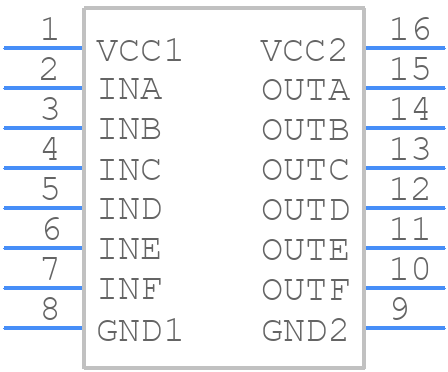

Use the download button to access the ISO7760FQDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
