KB-E100SRW - Kingbright

Description: LED Bars and Arrays Red 640nm 90mcd Diffused Light Bar

Download KB-E100SRW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

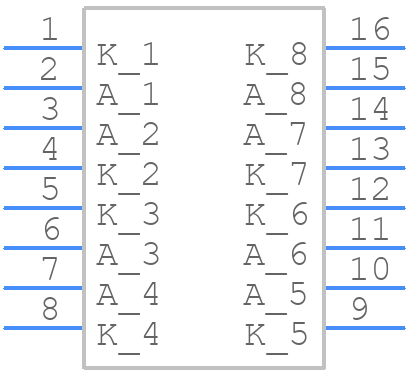

KB-E100SRW - Kingbright - PCB symbol
click to zoom
PCB Footprints

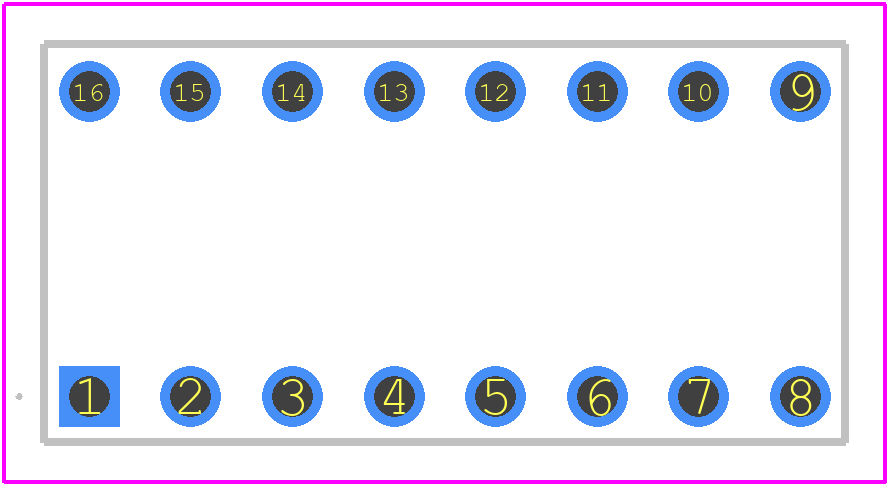

KB-E100SRW - Kingbright PCB footprint - Other - Other - KB-E100SRW-1
click to zoom
3D Models
KB-E100SRW - Kingbright - 3D model - Other - KB-E100SRW-1
click to zoom

KB-E100SRW Details

  • Manufacturer Part Number:

    KB-E100SRW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    SUPER BRIGHT RED

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    90.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    6.12 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    660 nm

  • Shape:

    RECTANGULAR

  • Size:

    8.89 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

KB-E100SRW Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the KB-E100SRW is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, the KB-E100SRW is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The typical forward voltage drop of the KB-E100SRW is around 2.0-2.5V at a forward current of 20mA.
  • Yes, the KB-E100SRW is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The maximum allowable current for the KB-E100SRW is 30mA, but it's recommended to operate at a maximum of 20mA for optimal performance and lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KB-E100SRW Overview

Use the download button to access the KB-E100SRW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KB-E1, or try a keyword search, such as Visible LEDs
