LDC1612DNTT - Texas Instruments

Description: 2-channel, 28-bit Inductance-to-Digital Converter with I2C for Inductive Sensing

Download LDC1612DNTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

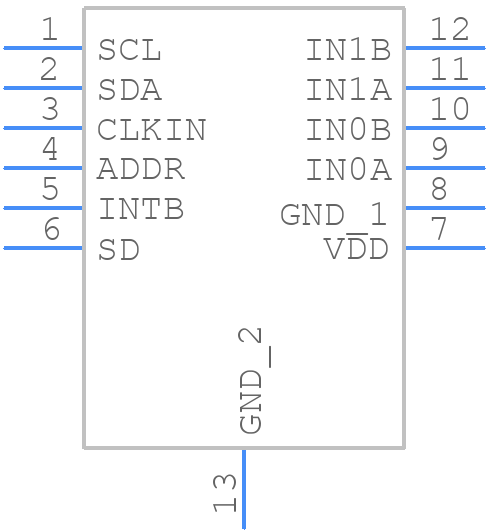

LDC1612DNTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1612DNTT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - LDC1612DNTT-1
click to zoom
3D Models
LDC1612DNTT - Texas Instruments - 3D model - Small Outline No-lead - LDC1612DNTT-1
click to zoom

LDC1612DNTT Details

  • Manufacturer Part Number:

    LDC1612DNTT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Number of input channels : 2

  • Converter Type:

    INDUCTANCE TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    28

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1612DNTT Frequently Asked Questions (FAQs)

  • A good PCB layout for the LDC1612DNTT involves keeping the sensor and the magnet close to each other, with the sensor's X-axis aligned with the magnet's direction of motion. The PCB should also have a solid ground plane and minimal signal routing under the sensor to reduce noise and interference.
  • Calibration involves adjusting the sensor's offset and gain to match the specific magnet and application. This can be done by taking multiple readings at different magnet positions and temperatures, and then using these readings to calculate the optimal offset and gain values.
  • The maximum operating frequency of the LDC1612DNTT is 100 kHz, but this can be limited by the specific application and the quality of the magnet and sensor alignment.
  • The LDC1612DNTT is designed to be robust against vibration and shock, but it's still important to follow proper mounting and installation procedures to ensure reliable operation. Additionally, the sensor's built-in filters can help reduce the effects of vibration and shock on the output signal.
  • The LDC1612DNTT is rated for operation up to 125°C, but its accuracy and reliability may be affected at high temperatures. It's essential to consider the specific application and temperature range when selecting a sensor for high-temperature use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDC1612DNTT Overview

Use the download button to access the LDC1612DNTT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC16, or try a keyword search, such as Other Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
