LDC1612QDNTRQ1 - Texas Instruments

Description: 2-channel, AEC-Q100 qualified, 28-bit Inductance-to-Digital Converter with I2C for Inductive Sensing

Download LDC1612QDNTRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

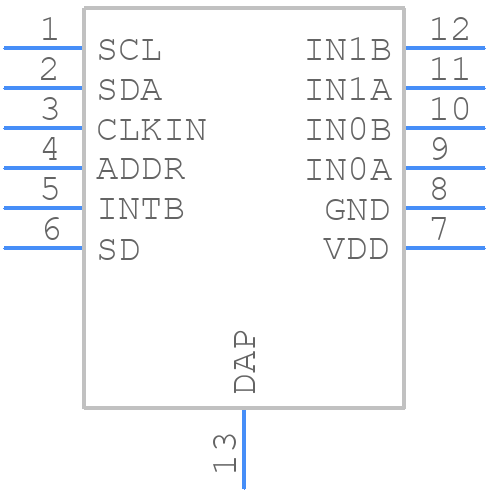

LDC1612QDNTRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1612QDNTRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON (12)*-*
click to zoom
3D Models
LDC1612QDNTRQ1 - Texas Instruments - 3D model - Small Outline No-lead - WSON (12)*-*
click to zoom

LDC1612QDNTRQ1 Details

  • Manufacturer Part Number:

    LDC1612QDNTRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Number of input channels : 2

  • Converter Type:

    INDUCTANCE TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    28

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LDC1612QDNTRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sensor and the IC close together, and use a shielded cable for the sensor connection. Refer to the TI application note 'LDC1612 PCB Layout Guidelines' for more details.
  • Calibration involves adjusting the gain and offset of the device. Use the 'LDC1612 Calibration and Test' software tool from TI to generate a calibration file. The tool provides a step-by-step guide for calibration. Refer to the 'LDC1612 Calibration and Test User's Guide' for more information.
  • The maximum frequency of operation for the LDC1612QDNTRQ1 is 100 kHz. However, the device can be operated at higher frequencies with reduced accuracy and increased noise sensitivity.
  • The LDC1612QDNTRQ1 has an internal temperature sensor. Use the temperature data to compensate for temperature effects on the inductance measurement. The device also has a built-in temperature coefficient correction feature. Refer to the datasheet for more information on temperature compensation.
  • Power up the device in the following sequence: VDD, AVDD, and then DVDD. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
