LDC1612QDNTTQ1 - Texas Instruments

Description: Inductance to Digital Converter Automotive 12-Pin WSON EP T/R

Download LDC1612QDNTTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

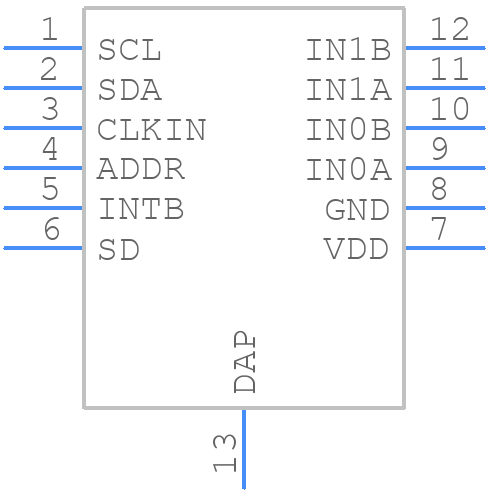

LDC1612QDNTTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1612QDNTTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DNT0012B_-
click to zoom
3D Models
LDC1612QDNTTQ1 - Texas Instruments - 3D model - Small Outline No-lead - DNT0012B_-
click to zoom

LDC1612QDNTTQ1 Details

  • Manufacturer Part Number:

    LDC1612QDNTTQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-06-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Number of input channels : 2

  • Converter Type:

    INDUCTANCE TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    28

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LDC1612QDNTTQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sensor and the MCU close together, and use a shielded cable for the sensor connections to minimize noise.
  • Calibration involves applying a known inductance value to the sensor and adjusting the internal registers to match the expected value. TI provides a calibration guide and software tools to simplify the process.
  • The LDC1612QDNTTQ1 can operate up to 100 kHz, but the maximum frequency depends on the specific application and the desired accuracy. Consult the datasheet and application notes for more information.
  • The LDC1612QDNTTQ1 has an internal temperature sensor, and temperature compensation can be performed using the built-in temperature coefficient correction. Consult the datasheet and application notes for more information.
  • Power up the VDD pin first, followed by the VCC pin. Ensure that the power supplies are stable and within the recommended voltage range before initializing the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDC1612QDNTTQ1 Overview

Use the download button to access the LDC1612QDNTTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC16, or try a keyword search, such as Other Converters
