LM10504TME/NOPB - Texas Instruments

Description: Texas Instruments LM10504TME/NOPB, Power Management IC Quad, 1.6A, 5.5 V, Power Management Unit, 2.3 MHz, 34-Pin, DSBGA

Download LM10504TME/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

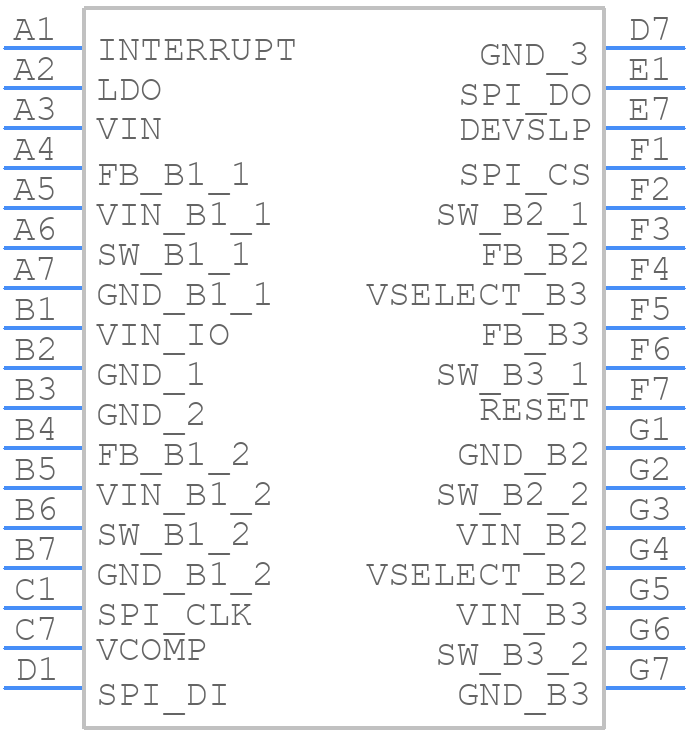

LM10504TME/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM10504TME/NOPB - Texas Instruments PCB footprint - BGA - BGA - YFR0034x
click to zoom
3D Models
LM10504TME/NOPB - Texas Instruments - 3D model - BGA - YFR0034x
click to zoom

LM10504TME/NOPB Details

  • Manufacturer Part Number:

    LM10504TME/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    5.5 V

  • JESD-30 Code:

    S-PBGA-B34

  • JESD-609 Code:

    e1

  • Length:

    2.81 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    1.6 A

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA34,7X7,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.81 mm

LM10504TME/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • Ensure the input voltage (VIN) is within the recommended range of 2.7V to 5.5V, and the output voltage (VOUT) is set within the recommended range of 0.8V to VIN - 0.5V. Also, ensure the device is operated within the recommended junction temperature range of -40°C to 125°C.
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, and an X5R or X7R dielectric. The capacitor should be placed as close to the VIN pin as possible to minimize noise and improve stability.
  • The output voltage accuracy and tolerance can be calculated using the formula: VOUT = (VREF x (1 + (R1/R2))) ± (VREF x (tolerance percentage)). Where VREF is the internal reference voltage, R1 and R2 are the feedback resistors, and tolerance percentage is the specified tolerance in the datasheet.
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, and an X5R or X7R dielectric. The capacitor should be placed as close to the VOUT pin as possible to minimize noise and improve stability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM10504TME/NOPB Overview

Use the download button to access the LM10504TME/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM105, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
