A good PCB layout for the LM1877 involves keeping the input and output traces short and separate, using a star-ground configuration, and placing the decoupling capacitors close to the IC. A 4-layer PCB with a dedicated ground plane is recommended.
The gain resistors (Rf and Ri) should be chosen based on the desired gain and input impedance. A higher gain requires smaller resistors, while a higher input impedance requires larger resistors. The datasheet provides a gain calculation formula to help with the selection.
The maximum power dissipation of the LM1877 is 2.5W. However, this can be increased by using a heat sink or a thermally enhanced package. The power dissipation should be calculated based on the output power, supply voltage, and quiescent current.
Yes, the LM1877 can be used as a line driver. However, it's essential to ensure that the output stage is properly terminated to avoid oscillations. A 100-ohm to 150-ohm load impedance is recommended, and the output should be AC-coupled to the load.
To reduce noise and hum, use a well-regulated power supply, decouple the power pins with 10uF to 22uF capacitors, and use a star-ground configuration. Additionally, keep the input and output traces separate, and avoid running digital and analog traces parallel to each other.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM1877MX-9/NOPB Overview

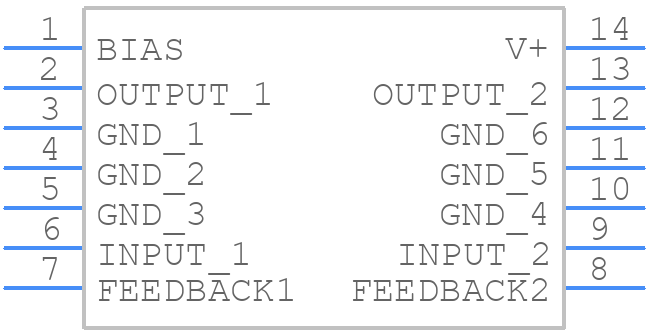

Use the download button to access the LM1877MX-9/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM187,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
