Texas Instruments provides a recommended PCB layout in the LM25056 evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using a soft-start capacitor, setting the correct UVLO threshold, and implementing a controlled shutdown sequence.
Operating the converter at high ambient temperatures can reduce its reliability and lifespan. It's essential to consider the thermal derating curves provided in the datasheet and ensure that the converter is operated within its recommended temperature range to maintain reliability and performance.
To troubleshoot common issues, it's essential to follow a systematic approach, including checking the input voltage, output voltage, and current, as well as the converter's operating frequency and duty cycle. Texas Instruments also provides application notes and technical support resources to help diagnose and resolve common issues.
The LM25056 converter is designed to meet CISPR 22 Class B EMI standards, but it's still essential to follow good PCB layout practices, use shielding, and implement EMI filtering to ensure compliance with relevant EMC standards. Texas Instruments provides guidance on EMI and EMC considerations in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25056APSQE/NOPB Overview

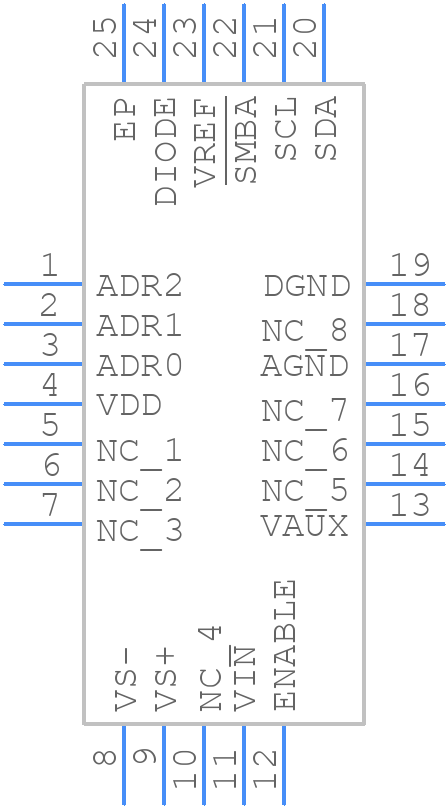

Use the download button to access the LM25056APSQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
